Solar DC Cables Copper Tinned XLPE 1500V DC

YePV DC Cables Copper Tinned XLPE 1500V DC

Overview

YePV DC Cables Copper Tinned XLPE 1500V DC

Key points

1500V DC High Voltage Rating: Reduces power loss and improves overall solar system efficiency.

Tinned Copper Conductor: Ensures ultra-low resistance, stable conductivity and anti-corrosion performance.

XLPE Cross-linked Insulation: Provides excellent thermal stability, electrical safety and mechanical toughness.

Wide Temperature Adaptability: Operating temperature from -40°C to +90°C, conductor peak temperature up to 120°C.

High Electrical Safety: Withstands 6.5kV AC or 15kV DC high voltage testing without breakdown.

Fire & Environmental Safety: Halogen-free, low smoke and flame retardant, fully RoHS compliant.

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Product Introduction

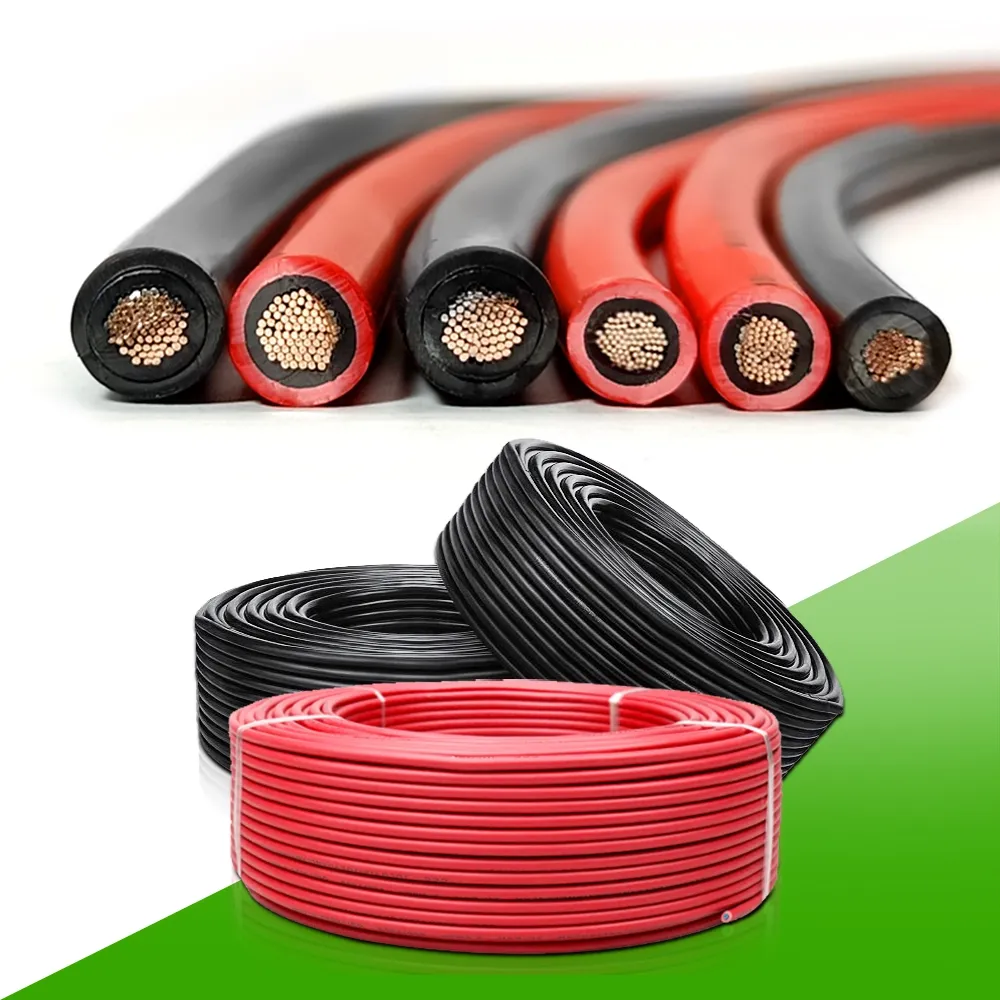

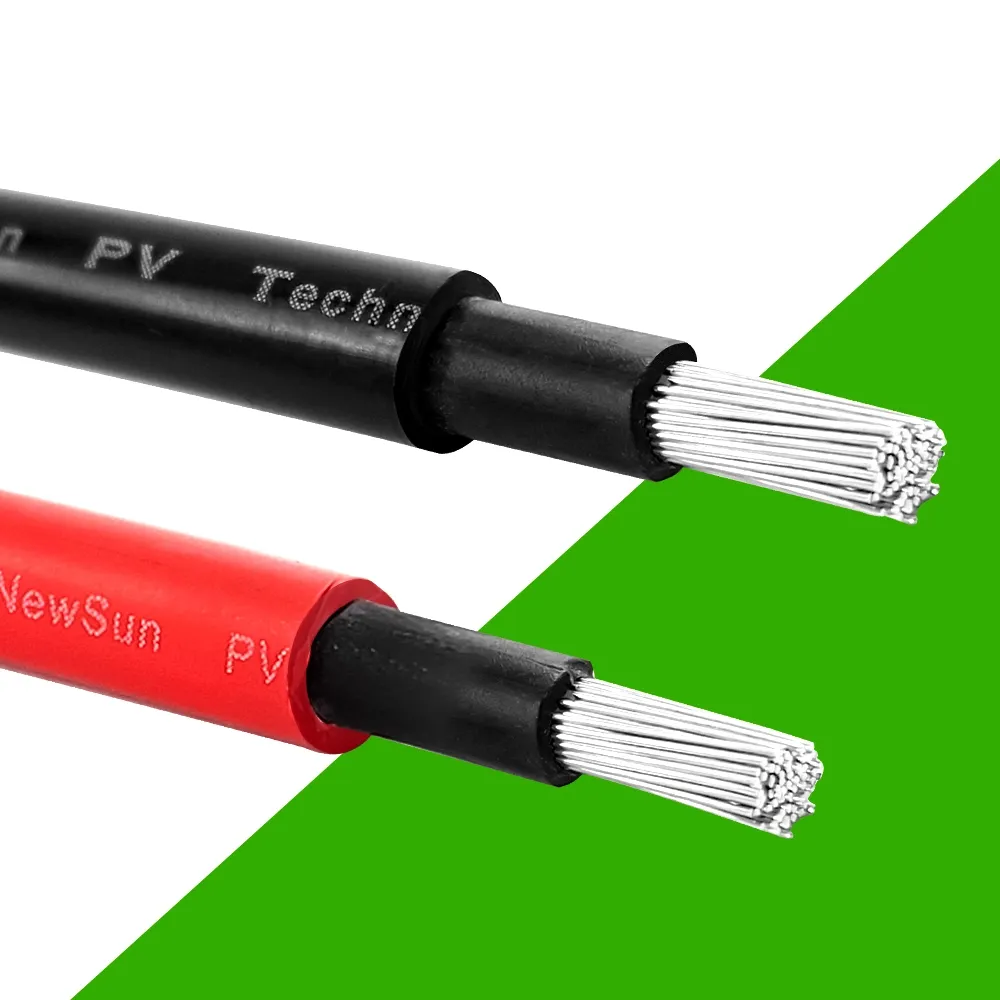

YePV 1500V DC Solar Cable is a high-performance PV wire engineered for solar DC side wiring. Adopting tinned annealed copper conductor and electron-beam cross-linked XLPE insulation, this solar cable delivers stable electrical performance, outstanding mechanical strength and superior weather resistance.

Compliant with IEC 62930 and TUV IEC standards, YePV solar DC cables support 25+ years outdoor service life, ideal for residential rooftops, commercial PV systems and utility-scale solar farms worldwide.

Product Specifications

Voltage Rating: 1500V DC Applicable Cable Size: 2.5mm²–16mm² (14AWG–8AWG) Protection Grade: IP68 Conductor Material: Tinned Annealed Copper Insulation Material: XLPE Cross-linked Polyethylene Certification: TUV / IEC Standard Compliant

Our Features

1500V DC High Voltage Rating: Reduces power loss and improves overall solar system efficiency.

Tinned Copper Conductor: Ensures ultra-low resistance, stable conductivity and anti-corrosion performance.

XLPE Cross-linked Insulation: Provides excellent thermal stability, electrical safety and mechanical toughness.

Wide Temperature Adaptability: Operating temperature from -40°C to +90°C, conductor peak temperature up to 120°C.

High Electrical Safety: Withstands 6.5kV AC or 15kV DC high voltage testing without breakdown.

Fire & Environmental Safety: Halogen-free, low smoke and flame retardant, fully RoHS compliant.

All-Weather Durability: Resists UV, ozone and extreme weather for long-term outdoor PV installation.

Our Advantages

25+ Years Long Service Life: Matches the lifespan of solar panels for long-term project reliability.

Stable Power Transmission: Low resistance minimizes energy loss under continuous load.

Strong Short-Circuit Resistance: Tolerates high temperature up to 200°C for 5 seconds under short-circuit conditions.

Flexible & Easy Installation: Stranded wire structure enables flexible routing for various PV layouts.

Global Standard Compatibility: Meets international IEC and TUV requirements for global EPC solar projects.

TÜVCEULIECRoHSREACHISO 9001RetieImport & Export Licence

FAQ

Solar DC Cables Copper Tinned XLPE 1500V DC — buyer questions

Q1: What is the voltage rating of YePV solar DC cable? A1: Rated 1500V DC, suitable for modern high-efficiency solar PV systems.

Q2: What material is the cable conductor? A2: Soft annealed tinned stranded copper for high conductivity and corrosion resistance.

Q3: Is this cable suitable for outdoor use? A3: Yes. It features UV resistance and weatherproof performance, designed for long-term outdoor solar installation.

Q4: What temperature range can the cable endure? A4: Operating temperature ranges from -40°C to +90°C, with maximum conductor temperature of 120°C.

Q5: Is the cable eco-friendly? A5: Yes, it is halogen-free, low-smoke and fully RoHS compliant for safe and green installation.
