MC4 Connector Series

IP68 MC4-compatible PV connectors & harnesses

Waterproof DC connection hardware for 1000V and 1500V photovoltaic systems, mated with standard PV cable without adapters.

Compatibility

Built to the MC4 interface standard buyers already install

Our connector housings follow mainstream MC4 geometry, so they mate with Stäubli MC4-EVO2 and general MC4 solar connectors and standard 4/6/10mm² PV cable. Contacts are tinned copper, sealing is IP68, and every batch is pull-tested and hi-pot tested in our Shanghai plant before packing.

Fits mainstream MC4 interface standards, including Stäubli MC4-EVO2
IP68 waterproof rating for permanent outdoor rooftop and ground use
1000V and 1500V DC versions, panel-side and cable-side
2-in-1 and 3-in-1 Y branch connectors for parallel strings
Tinned-copper contacts with low contact resistance and long-term stability
OEM housings and pre-assembled harnesses from our own mould workshop

Ask for connector samples

Tell us cable size, system voltage and branch configuration — free test samples are available for qualified projects.

Get wholesale price of solar PV fuse & PV connector from YEPV factory.

Product Range

11 connector, fuse connector & harness models

1500V DC Inline Fuse Connector
Fuse Connectors

1500V DC Inline Fuse Connector

IP68 in-line PV string fuse connector, 1A–50A, TÜV / CE / ETL

Technical details
1500V DC 100A Heavy-Duty Fuse Connector
Fuse Connectors

1500V DC 100A Heavy-Duty Fuse Connector

22×58mm fuse, 100A, up to 35mm² cable, IP68

Technical details
1500V DC 2-in-1 Branch Fuse Connector
Fuse Connectors

1500V DC 2-in-1 Branch Fuse Connector

Two protected inputs, one 60A output, EN60269 / EN62208

Technical details
1000V DC MC4 Inline Fuse Connector
Fuse Connectors

1000V DC MC4 Inline Fuse Connector

MC4-EVO2 compatible in-line fuse housing for 1000V strings

Technical details
1000V DC Anti-Reverse Diode Connector
Fuse Connectors

1000V DC Anti-Reverse Diode Connector

Blocking-diode connector against reverse current

Technical details
Y-Type Fuse Harness & Cable Assemblies
Harnesses

Y-Type Fuse Harness & Cable Assemblies

Factory pre-assembled PV harnesses with integrated fuse protection

Technical details
1500V DC PV Connector – Panel Side
PV Connectors

1500V DC PV Connector – Panel Side

Panel-mount solar connector, tinned copper contacts

Technical details
1500V DC PV Connector – Cable Side
PV Connectors

1500V DC PV Connector – Cable Side

MC-compatible IP68 cable plug, 2.5–16mm²

Technical details

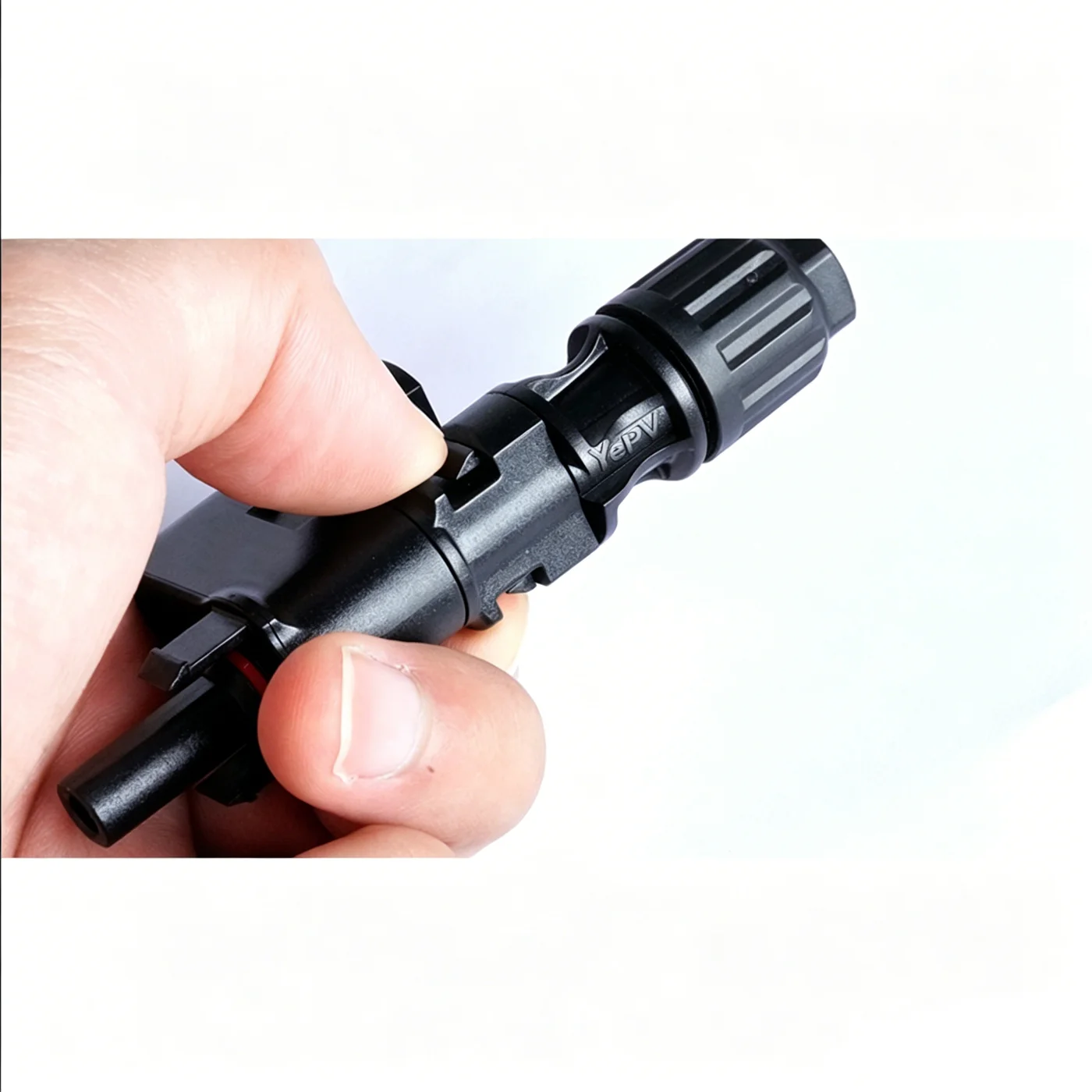

1500V DC 2-in-1 Y Branch Connector
PV Connectors

1500V DC 2-in-1 Y Branch Connector

Parallel string branching without fuse, PPE housing

Technical details

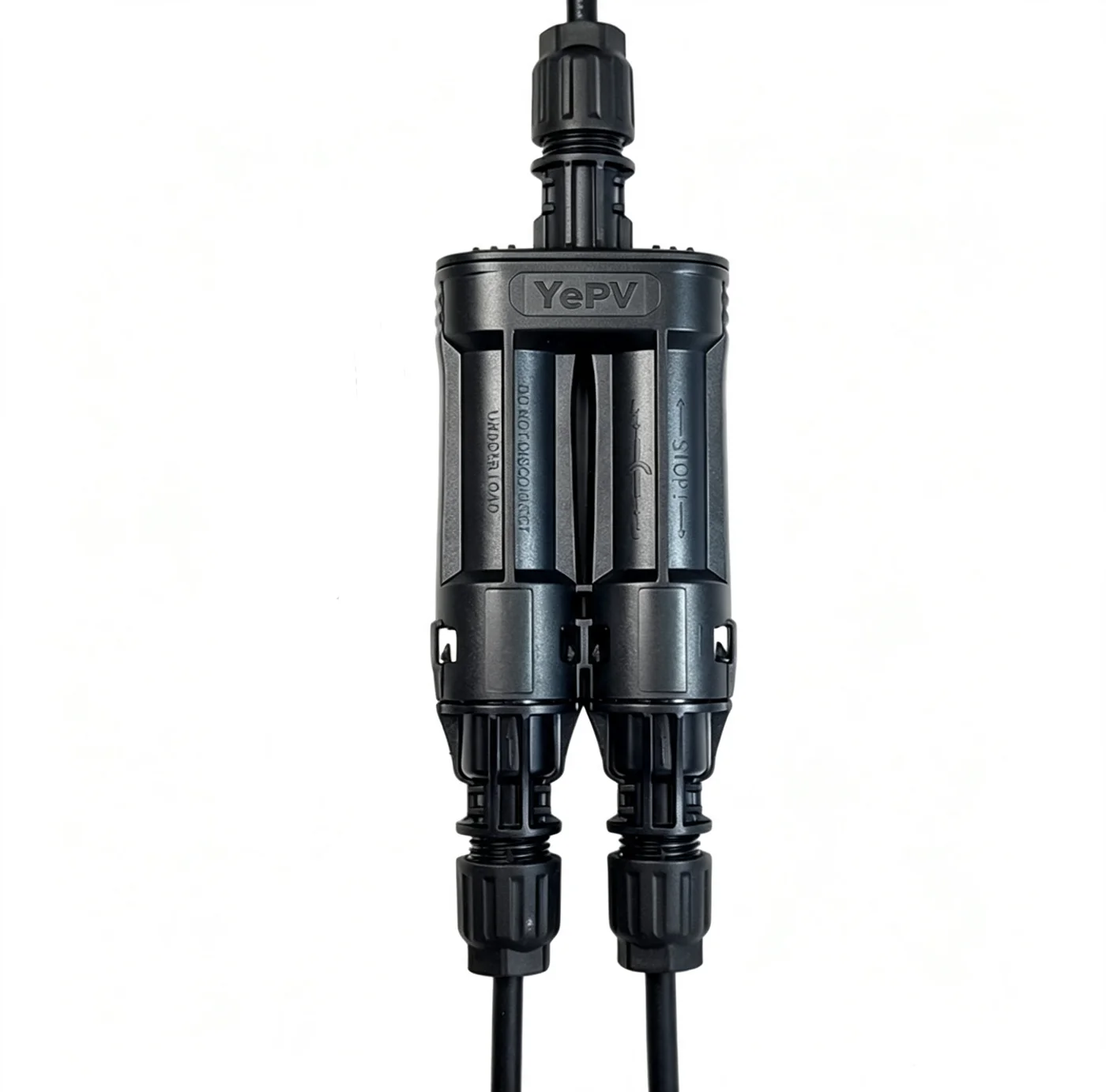

2-in-1 Fuse Connector Y Cable Harness
Harnesses

2-in-1 Fuse Connector Y Cable Harness

Integrated fuse + Y branch, pre-wired XLPE harness

Technical details

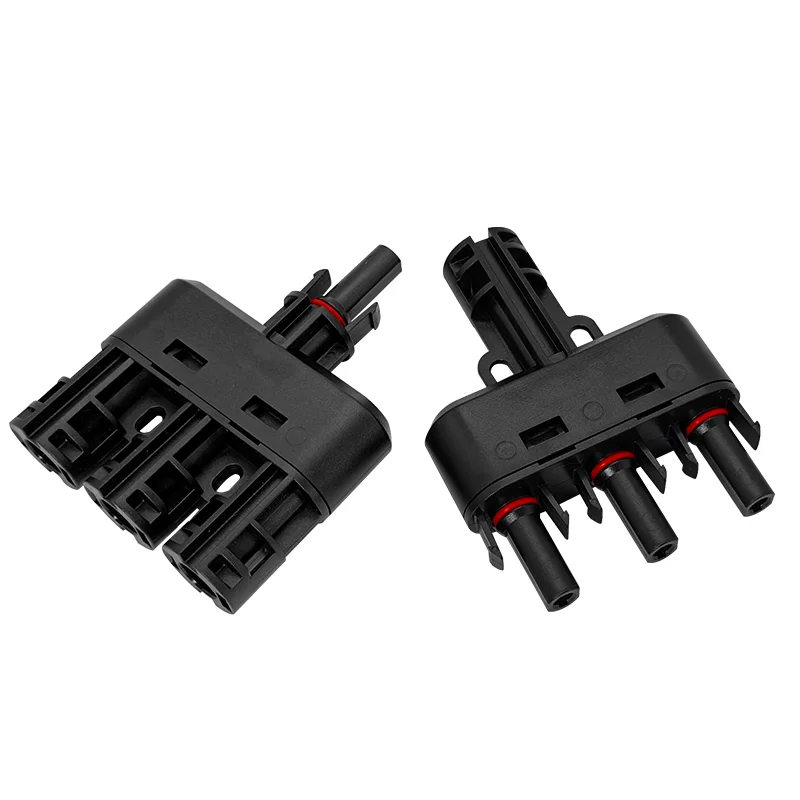

1500V DC 3-in-1 Y Branch Connector
PV Connectors

1500V DC 3-in-1 Y Branch Connector

Three-way parallel branch for high-density arrays

Technical details

Need a matched PV protection solution for your project?

Send your module power, system voltage and rated current — our engineers reply with matching models, full parameters and a factory-direct quotation.
