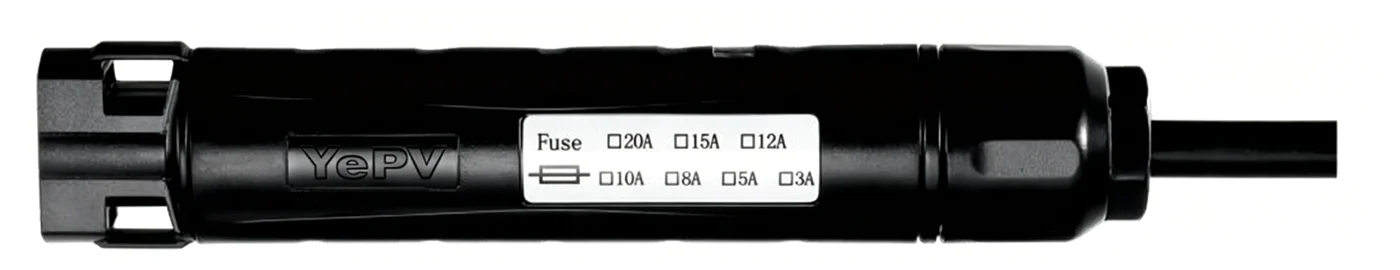

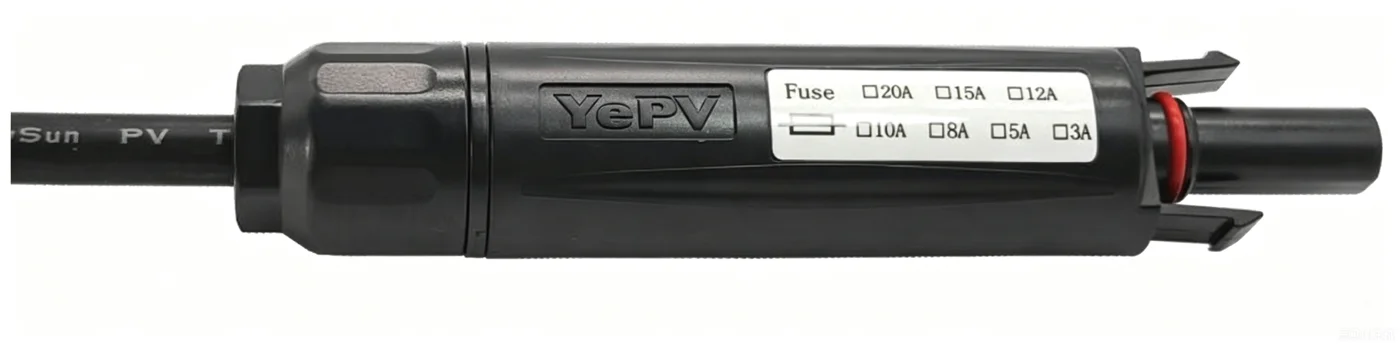

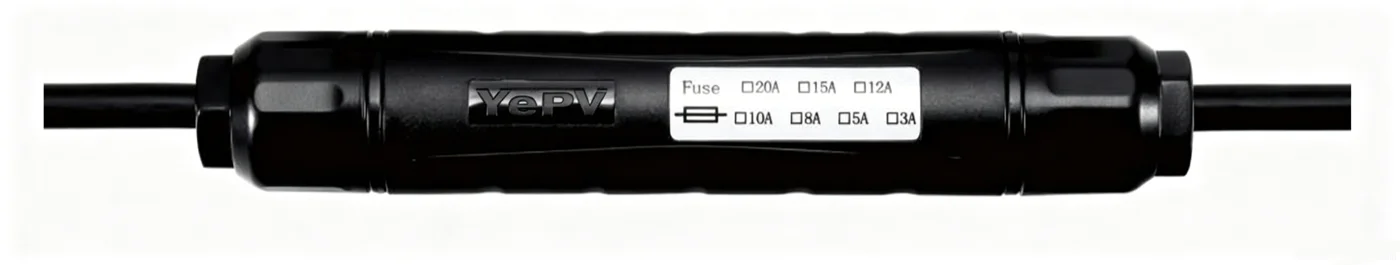

1000V DC MC4 Inline Fuse Connector

The YePV 1000V DC Solar Fuse Connector is a premium inline PV fuse connector built for photovoltaic power systems. As a reliable solar overcurrent protection accessory, it supports 1000V-DC high-voltage circuits and features IP67 dust-water resistance, delivering stable performance for outdoor solar installations.

This waterproof solar fuse connector reaches 30A maximum rating without fuse, and accepts 1-30A fuse inserts for flexible PV string over-current protection. Its typical contact resistance ≤0.25 mΩ cuts power loss and improves overall solar system generating efficiency.

Manufactured with robust PPE/PA engineering polymer, this solar cable connector fits 2.5-6mm² PV wires. Four configurable variants are available: cable-to-cable, male-to-female, cable-to-male, cable-to-female, bringing high flexibility for field assembly and system customization.

Thanks to its multi-functional integrated design, this 1000V DC PV connector reduces extra cable and connector expenses. Simple operation and convenient visual inspection lower labor cost and system downtime, delivering a cost-effective, high-efficiency protective solution for residential and commercial solar power projects.

The YePV 1000V DC Fuse Connector is purpose-built as a heavy-duty solar DC fuse connector for photovoltaic projects. Optimized for 1000V DC high-voltage working conditions, it ensures steady electrical performance in PV array circuits.

Boasting IP67 weather-proof grade, this outdoor solar connector blocks dust intrusion and withstands temporary water immersion, performing reliably under changeable outdoor climate conditions. Constructed from premium PPE/PA material, it delivers great mechanical strength plus excellent UV-resistance and chemical corrosion resistance for long-term field service.

This 1000V waterproof fuse connector is widely deployed in residential rooftop solar, commercial and industrial photovoltaic systems. It connects solar panels, inverters and charge controllers within PV string circuits.

With robust mechanical property and 1000V DC high-voltage rating, it serves as a trusted wiring component for both on-grid and off-grid solar installations, securing safe and efficient DC power transmission.
