Products
Solar DC fuse, connector & harness product ranges
32 production ranges covering gPV fuse links, DIN-rail fuse holders, in-line fuse connectors, MC-compatible PV connectors, branch connectors and custom cable harnesses — every one built, tested and certified in our own plant.
32 / 32 products
Fuse Connectors1500V DC Inline Fuse Connector
IP68 in-line PV string fuse connector, 1A–50A, TÜV / CE / ETL
Technical details
Fuse Connectors1500V DC 100A Heavy-Duty Fuse Connector
22×58mm fuse, 100A, up to 35mm² cable, IP68
Technical details
Fuse Connectors1500V DC 2-in-1 Branch Fuse Connector
Two protected inputs, one 60A output, EN60269 / EN62208
Technical details
Fuse Connectors1000V DC MC4 Inline Fuse Connector
MC4-EVO2 compatible in-line fuse housing for 1000V strings
Technical details
Fuse Connectors1000V DC Anti-Reverse Diode Connector
Blocking-diode connector against reverse current
Technical details
HarnessesY-Type Fuse Harness & Cable Assemblies
Factory pre-assembled PV harnesses with integrated fuse protection
Technical details
Tools & AccessoriesSolar Spanner Wrench No.2 Tool
Assembly / disassembly spanner for MC-type PV connectors
Technical details
PV Connectors1500V DC PV Connector – Panel Side
Panel-mount solar connector, tinned copper contacts
Technical details
PV Connectors1500V DC PV Connector – Cable Side
MC-compatible IP68 cable plug, 2.5–16mm²
Technical details
PV Connectors1500V DC 2-in-1 Y Branch Connector
Parallel string branching without fuse, PPE housing
Technical details
Harnesses2-in-1 Fuse Connector Y Cable Harness
Integrated fuse + Y branch, pre-wired XLPE harness
Technical details
PV Connectors1500V DC 3-in-1 Y Branch Connector
Three-way parallel branch for high-density arrays
Technical details
Tools & AccessoriesSolar DC Insulation Piercing Connector
Tap connections without cutting the main cable
Technical details
1000V DC PV FusesYePV-Y125 1000VDC 22×58mm Solar PV Fuse Link
The YePV-Y125 gPV fuse adopts the 22×58mm standard dimension, providing secure over-current protection for…
Technical details

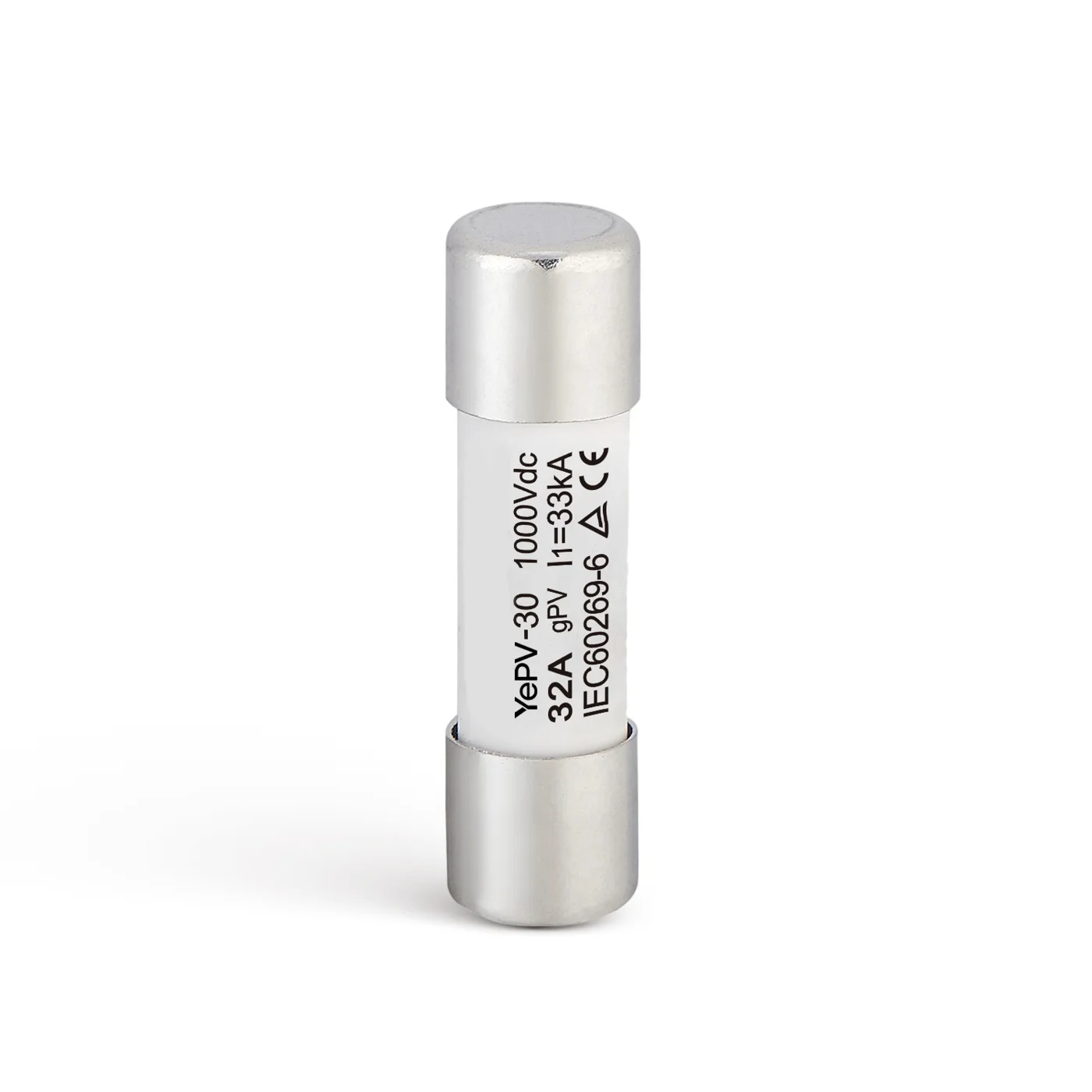

1000V DC PV FusesYePV-Y30 1000VDC 10×38mm gPV Solar Fuse Link
The YePV-Y30 gPV cartridge fuse is engineered for photovoltaic applications, offering rapid response against…
Technical details
1000V DC PV FusesYePV-Y63 1000VDC 14×51mm Solar PV Fuse Link
The YePV-Y63 gPV fuse is purpose-built to safeguard and isolate photovoltaic strings. Its standard 14×51mm…
Technical details

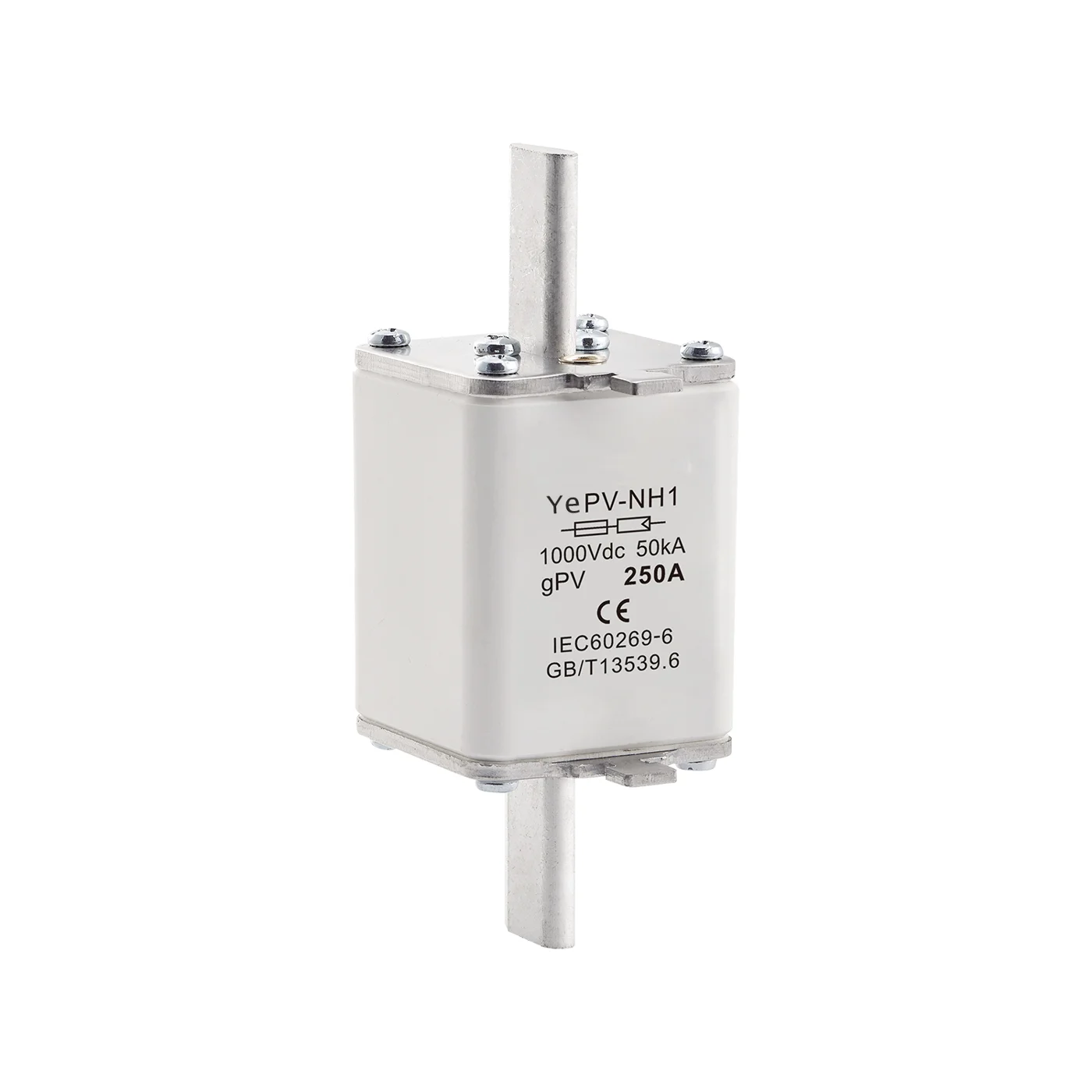

1000V DC PV FusesYePV-NH1 1000VDC Solar PV Fuse Link
The YePV-NH1 gPV fuse is engineered for protection and circuit isolation of PV array combiners and DC…
Technical details

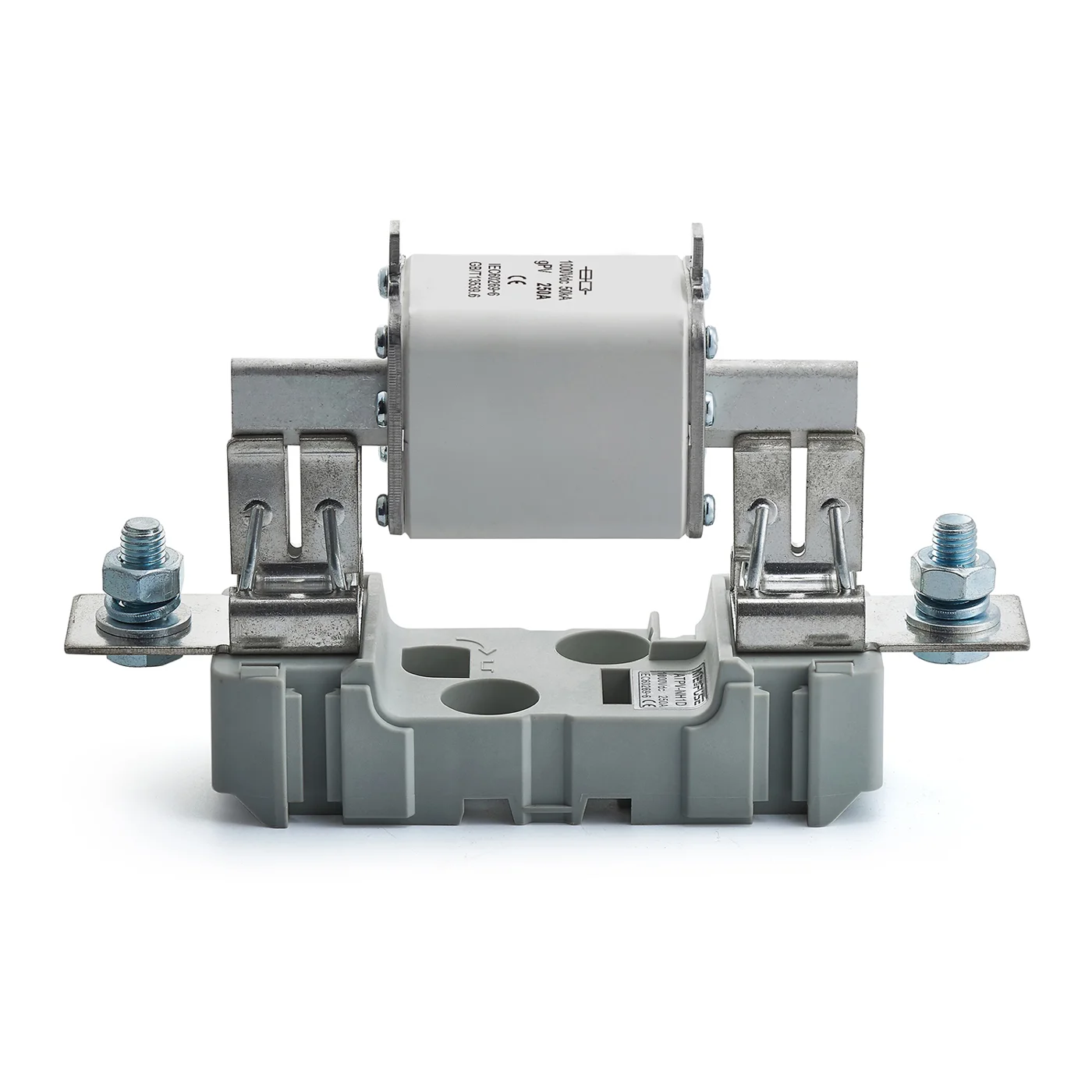

1000V DC PV FusesYePV NH1D 1000VDC NH1 PV Fuse Base
Please submit your inquiry via the form below for solar fuse components and PV protective accessories. YePV…
Technical details

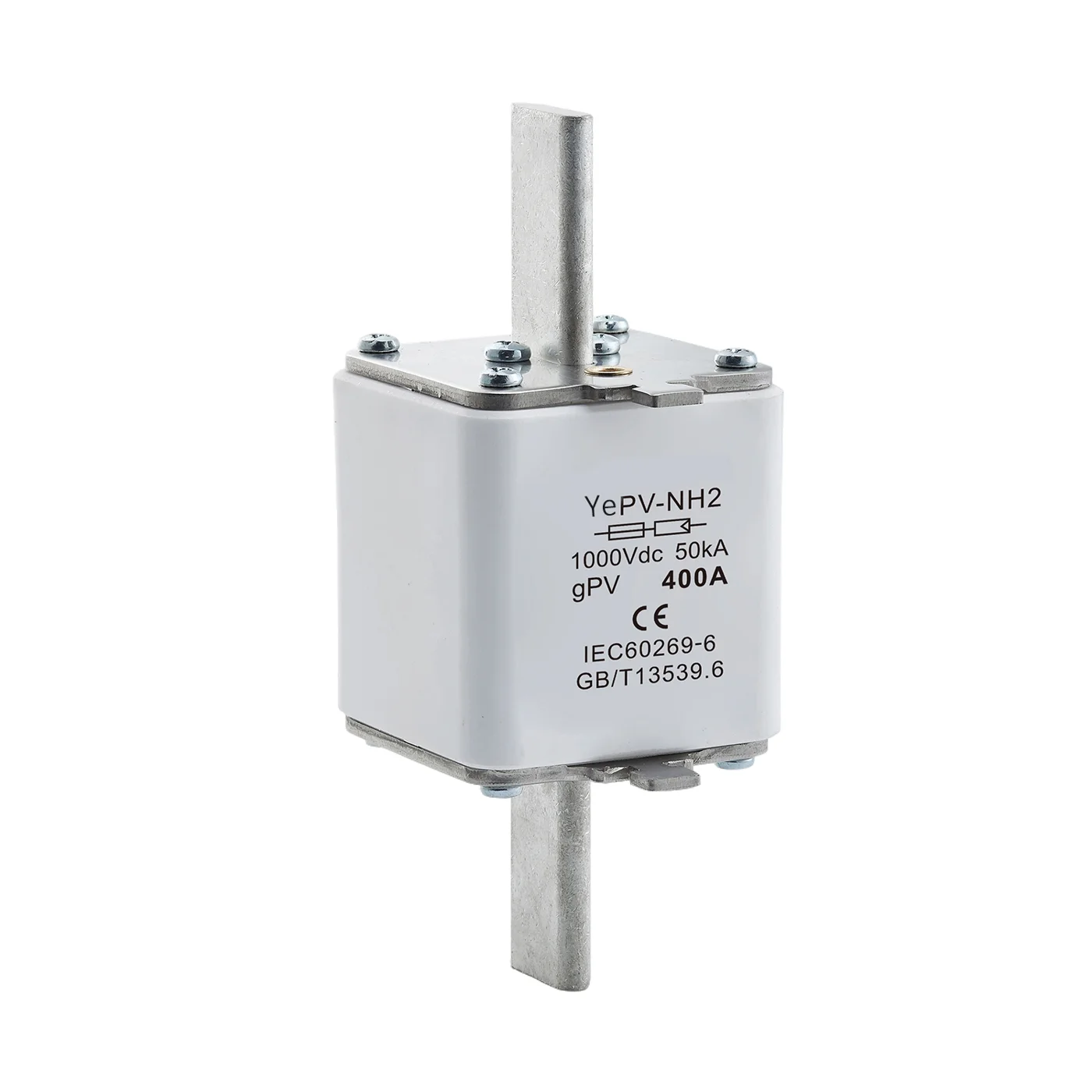

1000V DC PV FusesYePV-NH2 1000VDC Solar PV Inverter Fuse Link
The YePV-NH2 gPV fuse fitted with striker element provides current ratings ranging from 63A to 400A. It…
Technical details

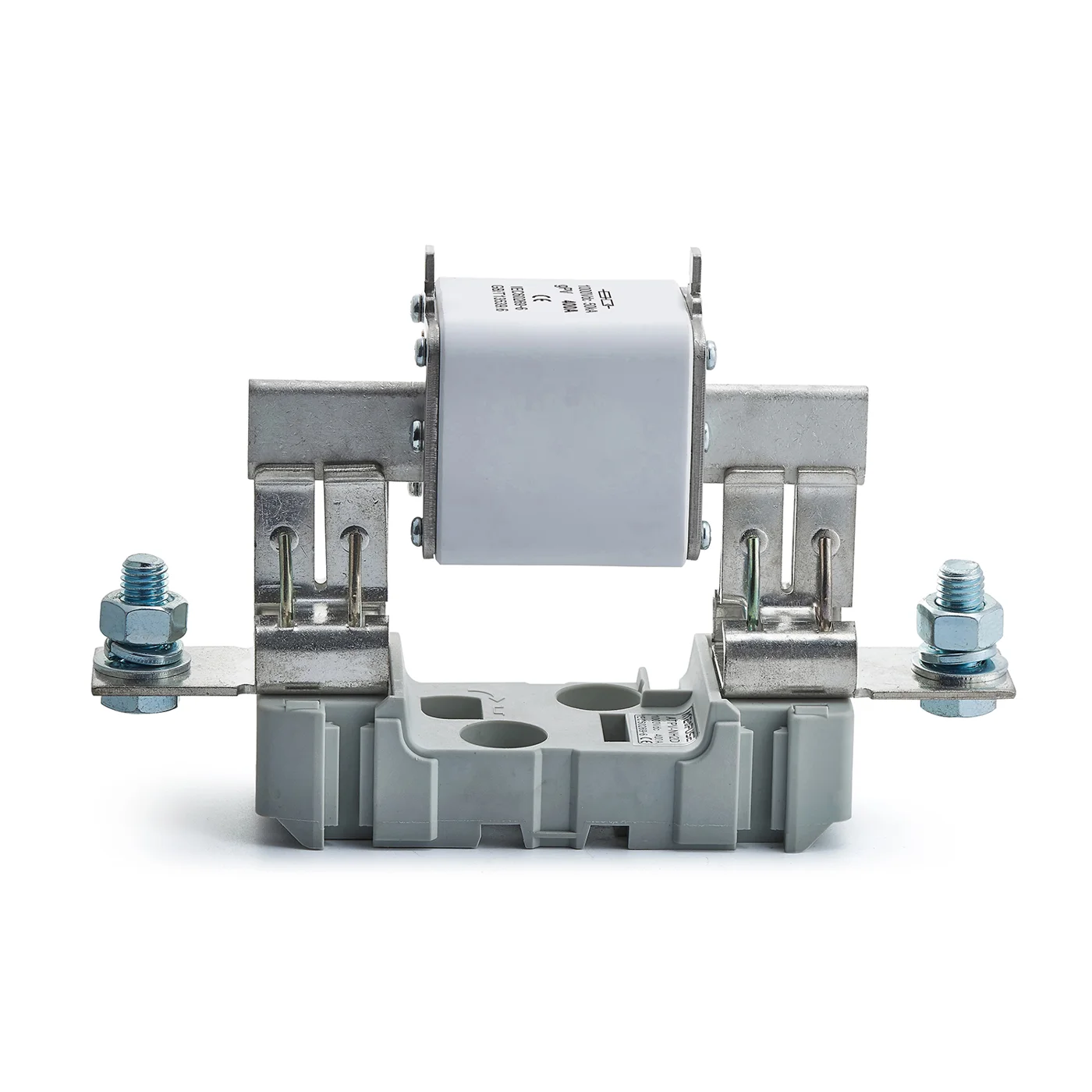

1000V DC PV FusesYePV-NH2D 1000VDC NH2 PV Fuse Holder
Featuring a compact footprint, the YePV-NH2D NH2 photovoltaic fuse base helps save installation space. Its…
Technical details

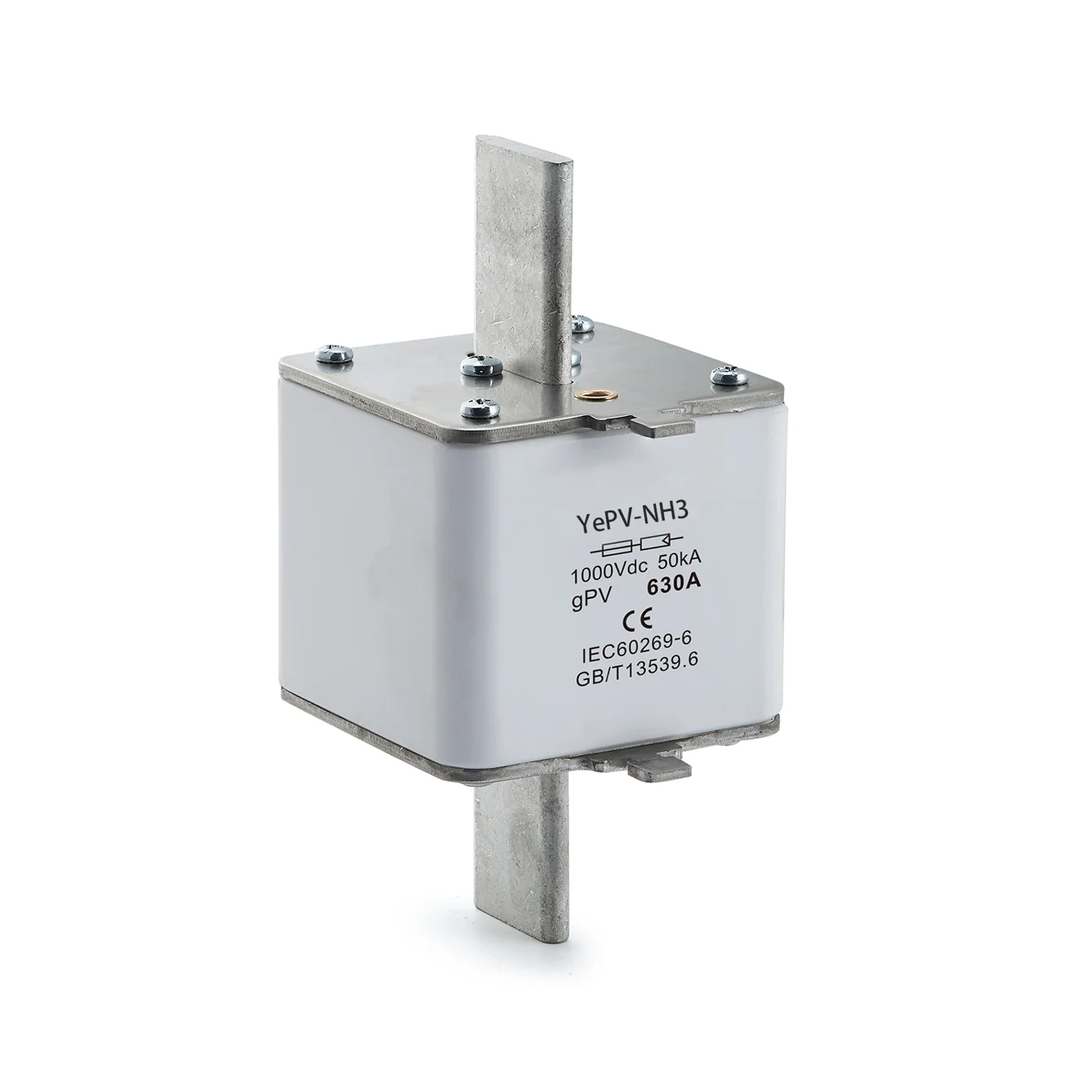

1000V DC PV FusesYePV-NH3 1000VDC Solar PV Fuse Link
YePV-NH3 is a 1000VDC high-current solar fuse link for photovoltaic overcurrent protection. It cuts off…
Technical details

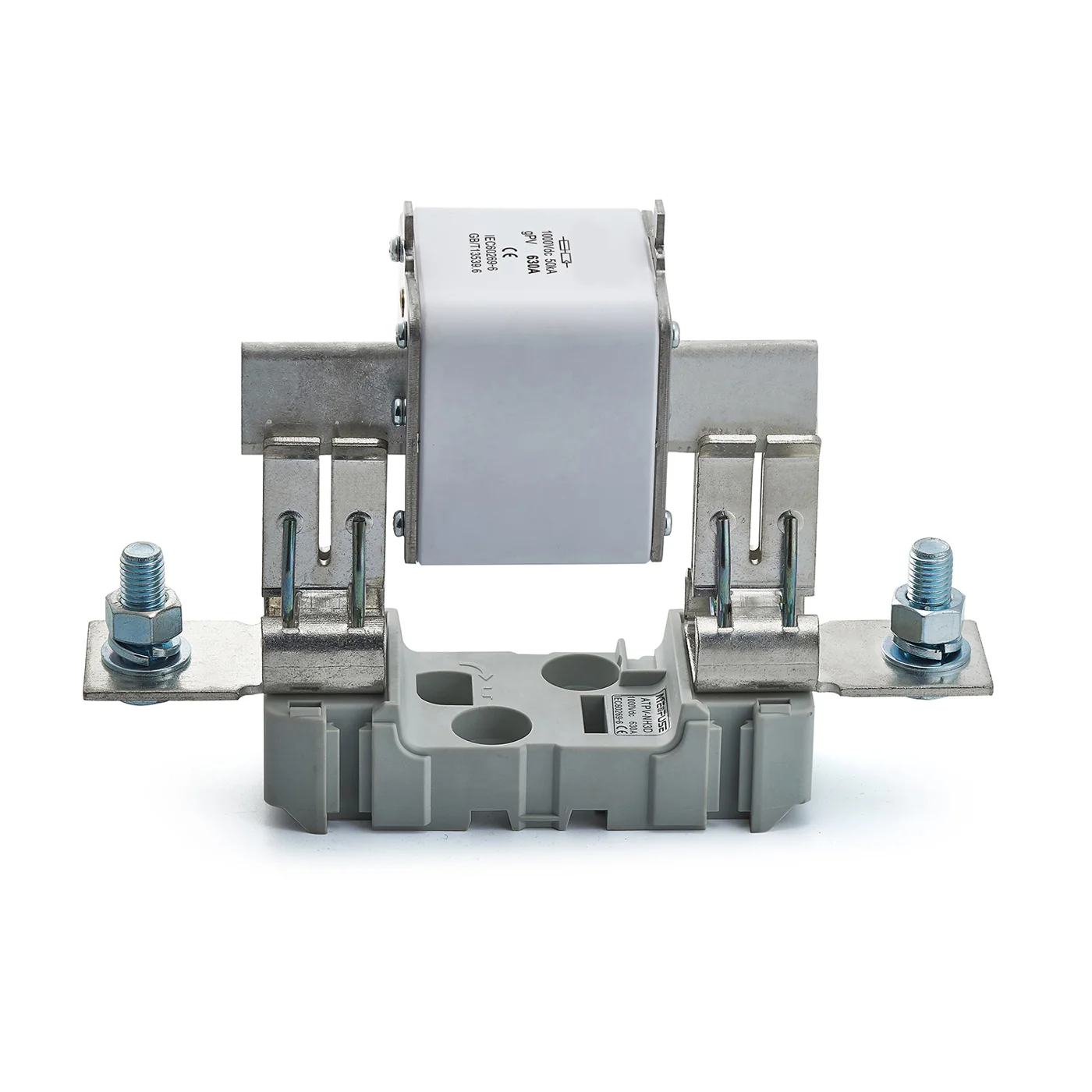

1000V DC PV FusesYePV-NH3D 1000VDC NH3 Solar Fuse Holder
YePV-NH3D is a heavyduty 1000VDC PV fuse holder for photovoltaic circuit overcurrent protection, featuring…
Technical details
1500V DC PV FusesYePV-32 1500VDC 10x65mm Solar PV Fuse Link
YePV-32 is a 1500VDC 10x65mm cylindrical solar fuse link, built for overcurrent protection of PV string and…
Technical details
1500V DC PV FusesYePV-32L 1500VDC 10x85mm Solar PV Fuse Link
YePV-32L is a 1500VDC 10x85mm cylindrical PV fuse link, specially designed for solar PV string protection and…
Technical details
1500V DC PV FusesYePV-63L 1500VDC 14×85mm Solar PV Fuse Link
YePV-63L is a 1500VDC 14×85mm cylindrical PV fuse link, engineered for photovoltaic string and combiner box…
Technical details

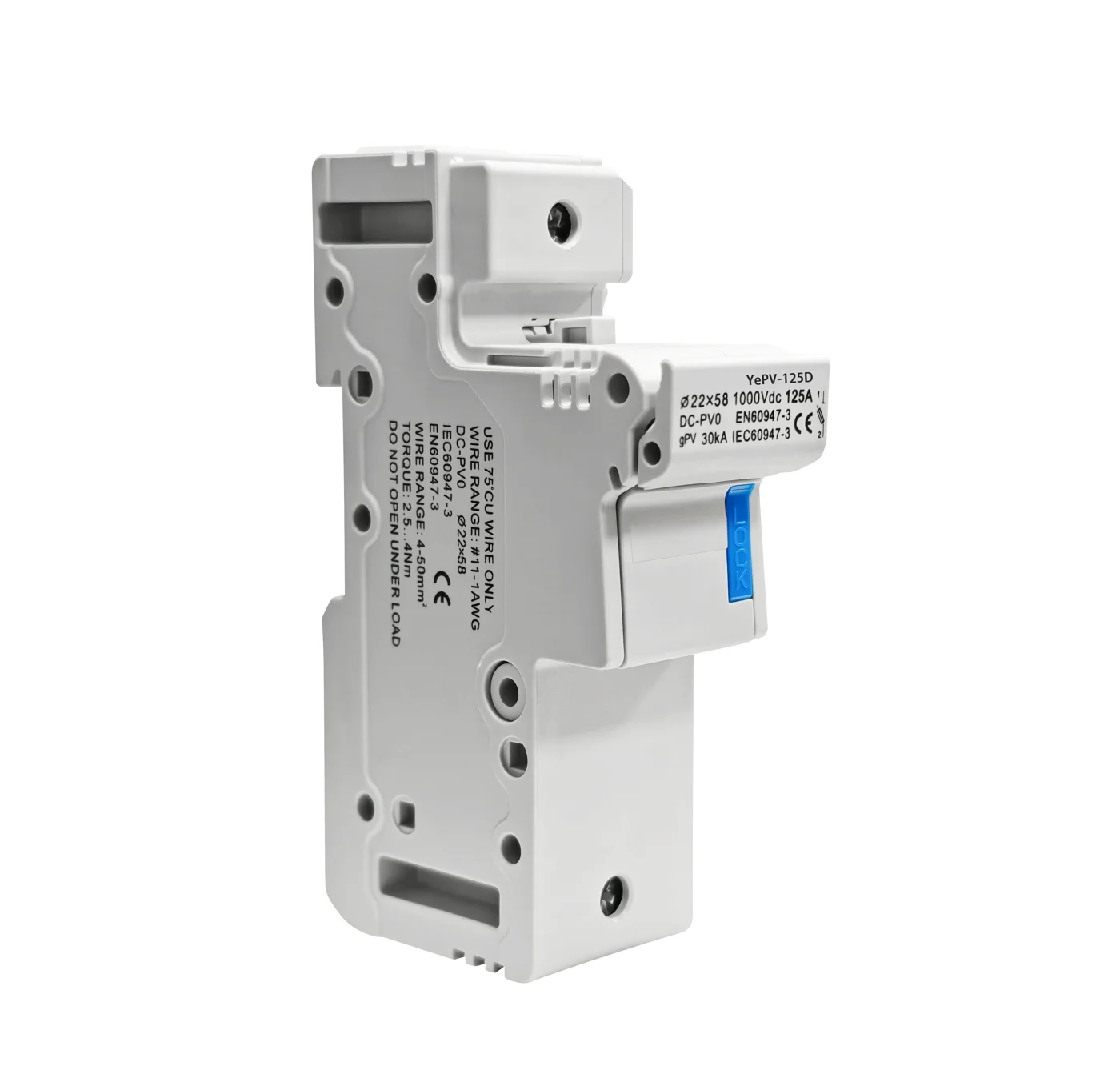

PV Fuse HoldersYePV-125D 1000VDC 22×58mm PV Fuse Holder
YePV-125D is a 1000VDC 22×58mm solar fuse holder for high-power photovoltaic circuit protection. It features…
Technical details

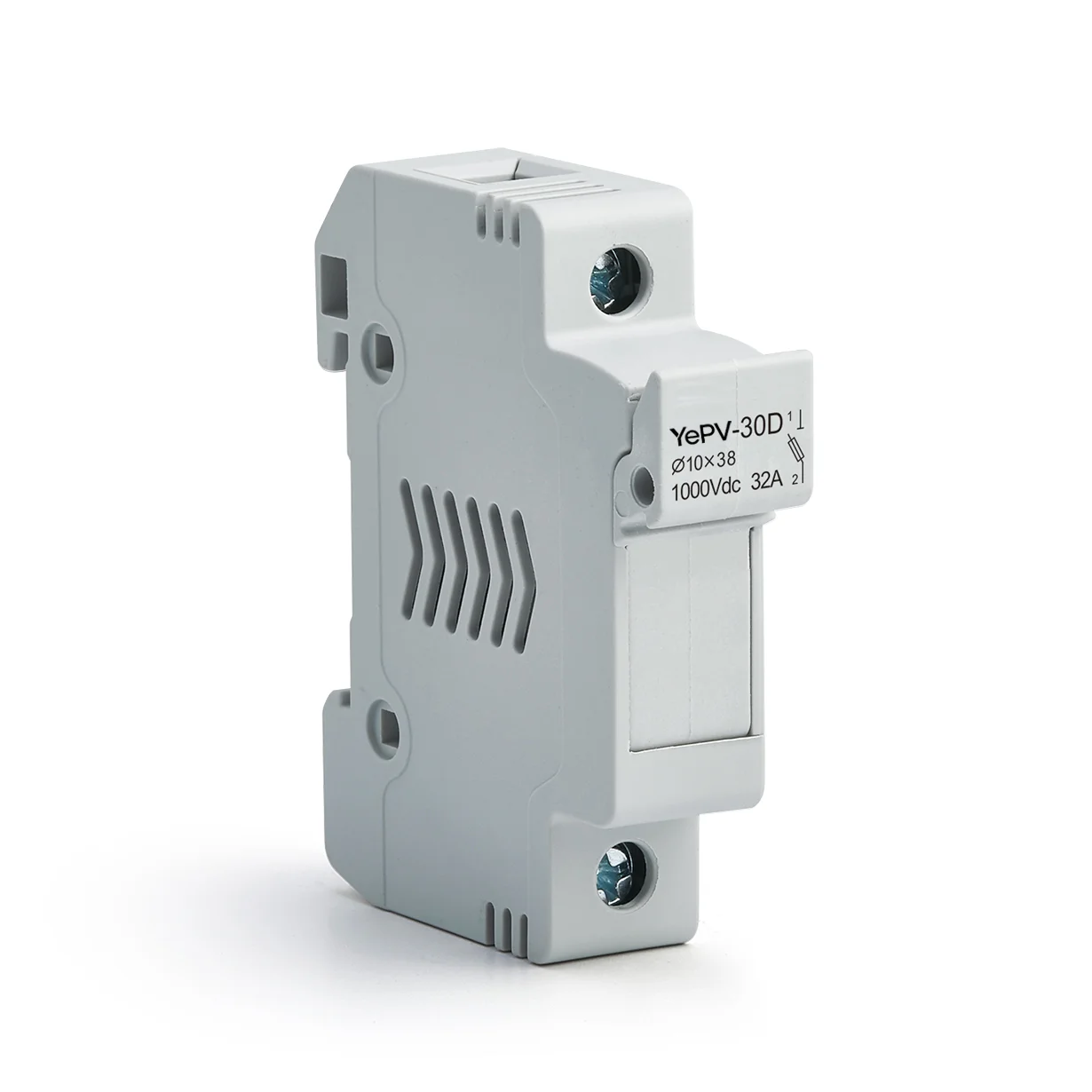

PV Fuse HoldersYePV-30D 1000VDC 10x38mm PV Fuse Holder
YePV-30D is a 1000VDC 10x38mm solar fuse holder designed for photovoltaic circuit protection. Adopting V0…
Technical details
PV Fuse HoldersYePV-30DL 1000VDC 10x38mm PV Fuse Holder With Indicator
YePV-30DL is an indicatortype 1000VDC 10x38mm solar fuse holder, delivering fast overload protection for…
Technical details

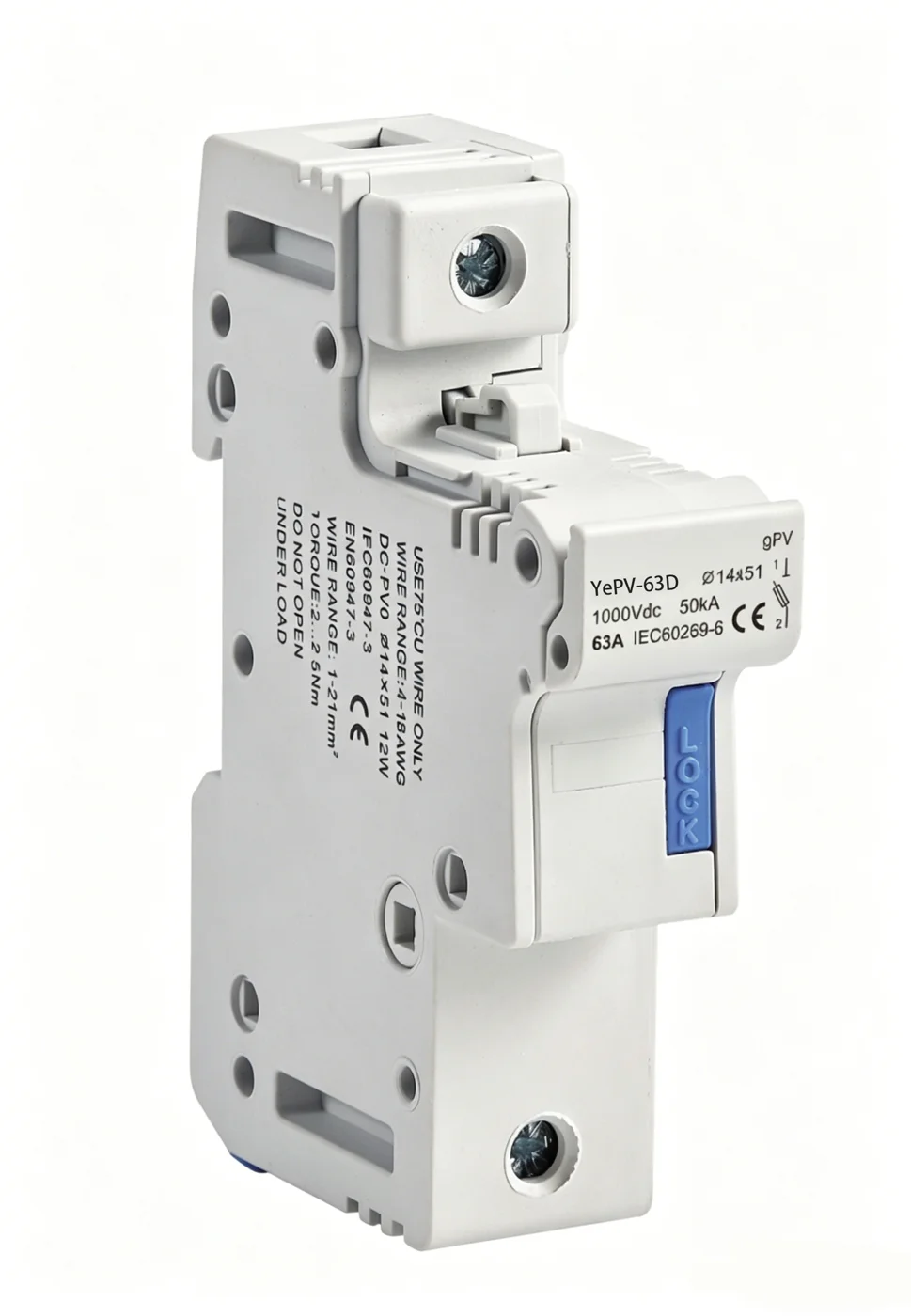

PV Fuse HoldersYePV-63D 1000VDC 14x51mm PV Fuse Holder
YePV-63D is a 1000VDC 14x51mm solar fuse holder, providing overload, shortcircuit protection and faultcurrent…
Technical details
PV Fuse HoldersYePV-63LD 1500VDC DIN Rail Mounting PV Fuse Holder
YePV-63LD is a 1500VDC DINrail solar fuse holder, compatible with 10×85mm & 14×85mm fuse links. Widely used…
Technical details
PV Fuse HoldersYePV-63LD / YePV-63LDL Series 1500VDC Solar PV Fuse Holder (Optional LED)
YePV-63LD / YePV-63LDL is a 1500VDC DIN rail PV fuse holder designed for highpower solar combiner boxes and…
Technical details
PV Fuse HoldersYePV-80D 1500VDC 22×58mm Solar PV Fuse Holder
YePV-80D is a 1500VDC 80A PV fuse holder, designed for PV string and solar DC circuit protection. It fits…
Technical detailsFull Product System
