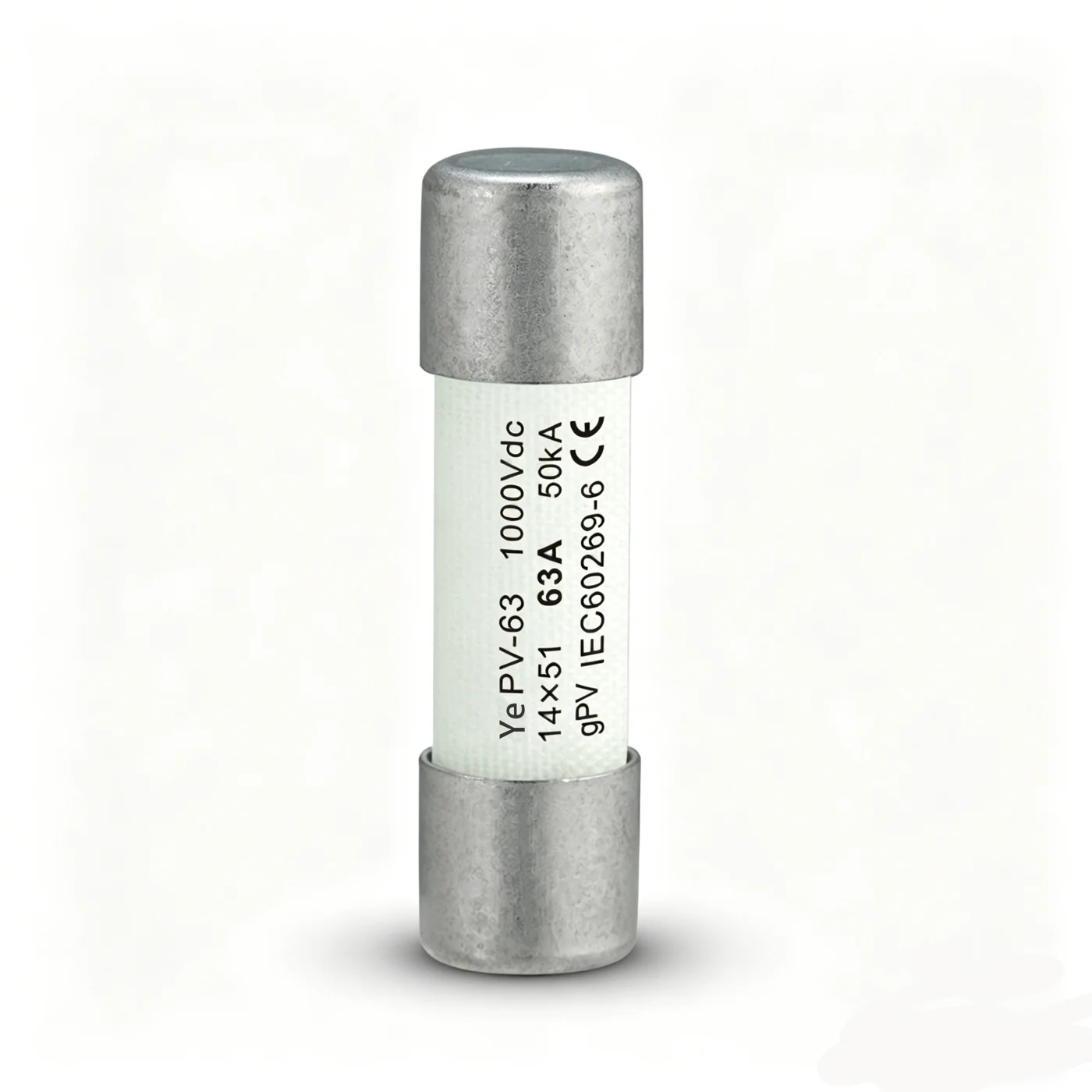

YePV-Y63 1000VDC 14×51mm Solar PV Fuse Link

The YePV-Y63 gPV fuse is purpose-built to safeguard and isolate photovoltaic strings. Its standard 14×51mm…

Overview

The YePV-Y63 gPV fuse is purpose-built to safeguard and isolate photovoltaic strings. Its standard 14×51mm cylindrical body delivers reliable circuit protection for 1000VDC solar installations.

Key points

Current ratings span 8A-63A to fit multiple PV array configurations

Designed for 1000VDC photovoltaic system operation

Compliant with IEC60269-6, qualified for worldwide projects

Compact cylindrical form factor for hassle-free fitting

Low power loss and reduced temperature rise to prolong service life

Works with DIN-rail mounted fuse holders

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Key Features

Current ratings span 8A-63A to fit multiple PV array configurations

Designed for 1000VDC photovoltaic system operation

Compliant with IEC60269-6, qualified for worldwide projects

Compact cylindrical form factor for hassle-free fitting

Low power loss and reduced temperature rise to prolong service life

Works with DIN-rail mounted fuse holders

50kA breaking capacity, TUV and CE certified

Production Description

Solar PV Thermal 14x51mm Fuse Link offers multiple ampere ratings from 8A to 63A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems.

Fuse cold resistance and power dissipation

Serial number	Rated current (A)	Pre-arcing I2t	Total I2t	1In (W)
1	32	325	2370	6.2
2	35	390	2844	7.5
3	40	450	3300	7.9
4	45	510	3700	8.2
5	50	570	4200	9.0
6	55	630	4600	10.0
7	60	690	5100	10.0
8	63	710	5200	11.0

Solar PV Fuse Link Technical parameters

Fuse type	Rated Voltage (V)	Rated Current (A)	Dimensions/Size (mm)	Dissipated power (W)
gPV			Figure No.	D×L
YePV-63	DC1000V	15、16、20、25、30、32、35、40、45、50、55、63	1	14×51	≤12

Time-Current Characteristic

rated current (A)	Standard: IEC60269-6	Standard: UL248-19
	105%	135%	135%	200%
In≤30	＞1h non fusing	＜1h fusing	＜1h fusing	12-240s
30＜In≤60	＞1h non fusing	＜1h fusing	＜1h fusing	12-360s
60＜In≤100	＞1h non fusing	＜1h fusing	＜1h fusing	0-480s

Recommended Fuse Holder

Without indicator: YePV-63D 14 x 51

With indicator: YePV-63DL 14 x 51

63A 1000V DC Fuse Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6

Class of Operation

gPV

DC Fuse 63A 1000V Applications

Combiner box

PV string, PV array protection

Inverters

Battery charge controllers

Re-combiner units

In-line PV module protection

Country of Origin

People's Republic of China
