1000V DC PV Fuses
The YePV-Y30 gPV cartridge fuse is engineered for photovoltaic applications, offering rapid response against…

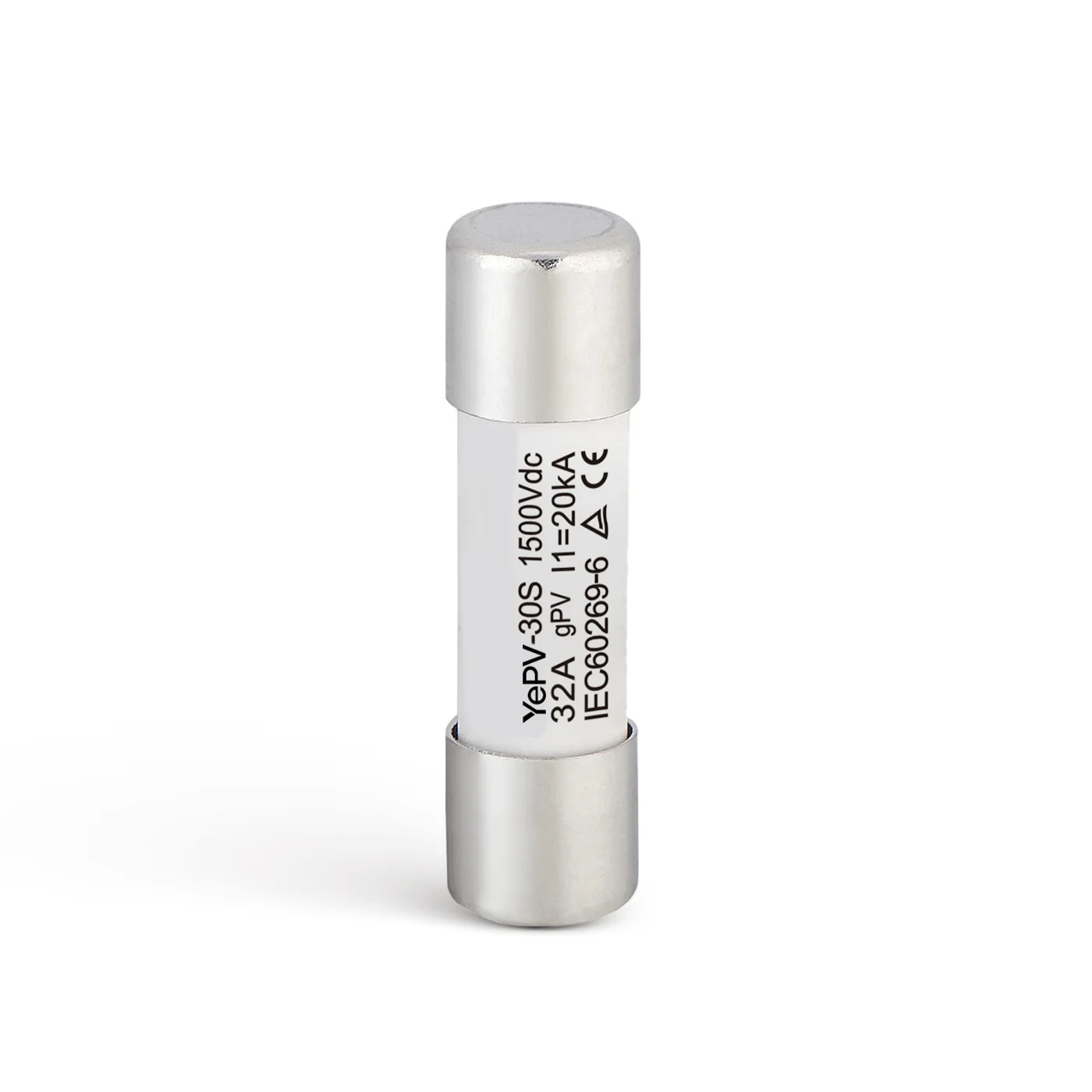

YePV-Y30 1000VDC 10×38mm gPV Solar Fuse Link
The YePV-Y30 gPV cartridge fuse is engineered for photovoltaic applications, offering rapid response against overload and short-circuit faults within 1000VDC solar circuits. Its industry-standard cylindrical dimension enables secure circuit protection for PV power systems.
Technical Documentation
10x38mm Fuse Link is available in multiple ampere ratings from 1A to 32A, which helps match specific requirements in various Photovoltaic(PV) applications such as PV combiner boxes, inverters, and so on.
| Serial number | Rated current (A) | Pre-arcing I2t | Total I2t | 0.8In (W) | 1In (W) |
| 1 | 1 | 1.1 | 3.9 | 0.99 | 1.30 |
| 2 | 2 | 1.5 | 5.2 | 1.04 | 1.36 |
| 3 | 3 | 2.4 | 8.6 | 1.08 | 1.42 |
| 4 | 4 | 2.9 | 11.4 | 1.2 | 1.58 |
| 5 | 5 | 6.7 | 25.7 | 1.39 | 1.83 |
| 6 | 6 | 10.5 | 40 | 1.40 | 1.84 |
| 7 | 8 | 15.2 | 57 | 1.42 | 1.86 |
| 8 | 10 | 20 | 62 | 1.58 | 2.08 |
| 9 | 12 | 30.4 | 143 | 2.00 | 2.62 |
| 10 | 15 | 45.6 | 205 | 2.24 | 2.95 |
| 11 | 16 | 49.8 | 220 | 2.33 | 3.06 |
| 12 | 20 | 79.8 | 315 | 2.37 | 3.12 |
| 13 | 25 | 114 | 486 | 2.63 | 3.46 |
| 14 | 30 | 143 | 713 | 2.88 | 3.78 |
| 15 | 32 | 148 | 722 | 3.00 | 3.95 |
| rated current (A) | Standard: IEC60269-6 | Standard: UL248-19 | ||
| 105% | 135% | 135% | 200% | |
| In≤30 | ＞1h non fusing | ＜1h fusing | ＜1h fusing | 12-240s |
| 30＜In≤60 | ＞1h non fusing | ＜1h fusing | ＜1h fusing | 12-360s |
| Fuse type | Rated Voltage (V) | Rated Current (A) | Dimensions/Size (mm) | Dissipated power (W) | |
| gPV | Figure No. | D×L | |||
| YePV-30 | DC1000V | 1、2、3、4、5、6、8、10、12、15、16、20、25、30、32 | 1 | 10×38 | ≤4.5 |
