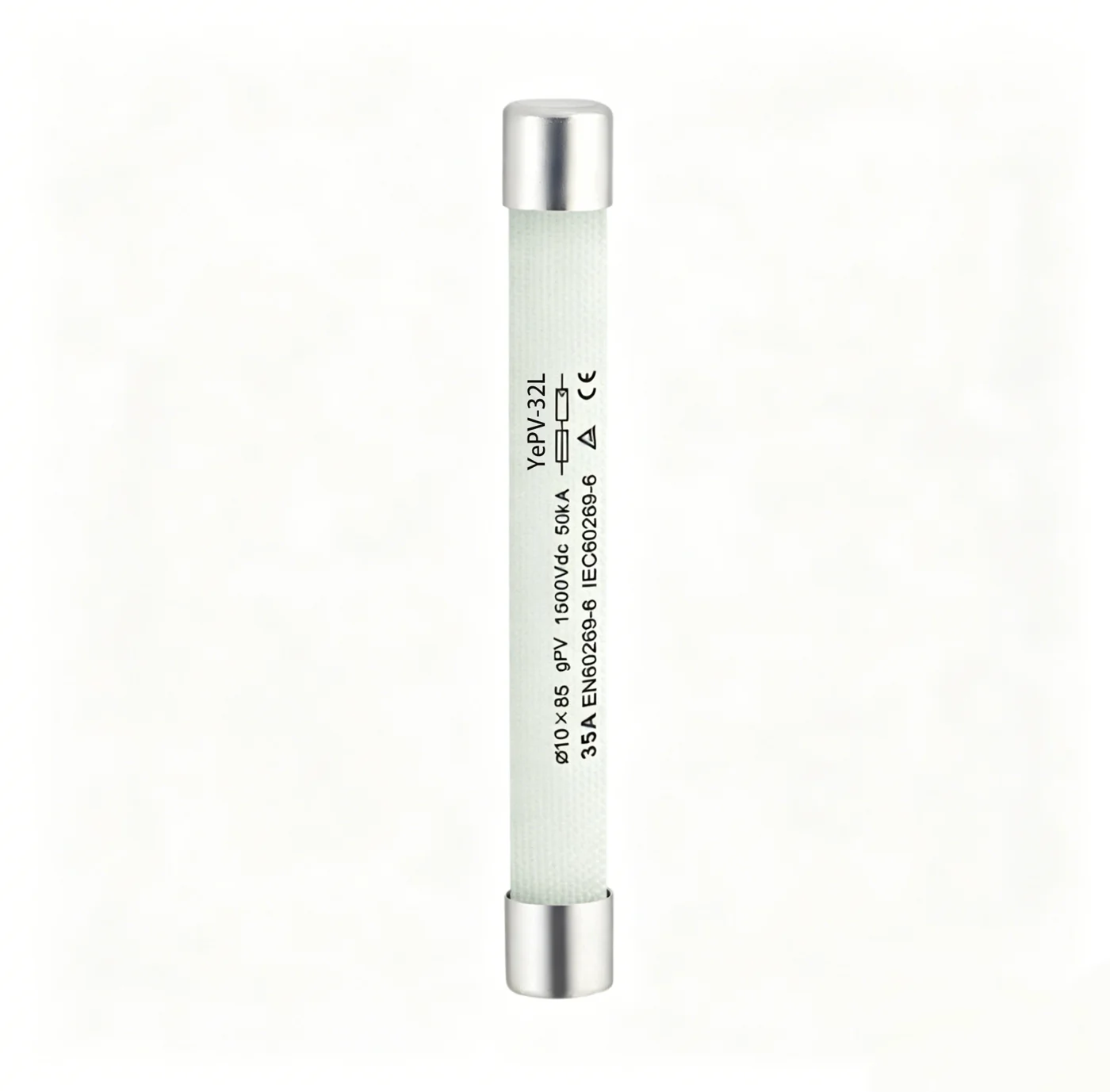

YePV-32L 1500VDC 10x85mm Solar PV Fuse Link
YePV-32L is a 1500VDC 10x85mm cylindrical PV fuse link, specially designed for solar PV string protection and combiner box DC circuit protection. It covers a current range of 1A–35A, fully adapted for mainstream 1500VDC photovoltaic power systems.
Focused on technical upgrading, YePV delivers high-performance solar overcurrent protection fuses to meet global solar project demands.
Technical Documentation
1500VDC 10x85mm Solar PV fuse link
gPV
| Serial number | Rated current（A） | Pre-arcing I2t | Total I2t | 1In（W） |
| 1 | 0.5 | 5 | 26 | 0.9 |
| 2 | 1 | 10 | 52 | 1.1 |
| 3 | 2 | 19 | 104 | 1.3 |
| 4 | 3 | 29 | 156 | 1.5 |
| 5 | 4 | 38 | 208 | 1.8 |
| 6 | 5 | 47 | 260 | 2.1 |
| 7 | 6 | 57 | 312 | 2.5 |
| 8 | 8 | 75 | 415 | 2.8 |
| 9 | 10 | 105 | 580 | 3.0 |
| 10 | 12 | 134 | 746 | 3.1 |
| 11 | 15 | 167 | 932 | 3.5 |
| 12 | 16 | 178 | 995 | 4.0 |
| 13 | 20 | 223 | 1243 | 4.5 |
| 14 | 25 | 279 | 1550 | 4.6 |
| 15 | 30 | 304 | 2220 | 5.4 |
| 16 | 32 | 325 | 2370 | 6.2 |
| 17 | 35 | 390 | 2844 | 7.5 |
| Fuse type | Rated Voltage (V) | Rated Current (A) | Dimensions/Size (mm) | Dissipated power (W) | |
| gPV | Figure No. | D×L | |||
| YePV-32L | DC1500V | 1、2、3、4、5、6、8、10、12、15、16、20、25、30、32、35 | 1 | 10×85 | ≤7.5 |
| rated current (A) | Standard：IEC60269-6 | Standard：UL248-19 | ||
| 105% | 135% | 135% | 200% | |
| In≤30 | ＞1h non fusing | ＜1h fusing | ＜1h fusing | 12-240s |
| 30＜In≤60 | ＞1h non fusing | ＜1h fusing | ＜1h fusing | 12-360s |
Submit your inquiry via the form below for YePV solar fuse links and 1500VDC photovoltaic protection components. Our sales team will reply to your wholesale and technicalrelated requests within 24 hours.
FAQ
Welcome to request quotations for YePV PV overcurrentprotection accessories. Please send your requirements via email or inquiry form, and you will get our detailed reply within 24 hours.
Yes, custom logo printing service is available for all YePV solar hardware, MOQ is 1000 pieces per item.
Standard leadtime is 715 working days for regularvolume orders of photovoltaic circuitprotection parts.
Yes, bulk discount applies for orders over 1000 pcs. Please contact us for the best factory wholesale price.
Yes. Every production stage and finished YePV solar products undergo strict QC inspection. All PV fuses and holders are fully qualitychecked before shipment.
