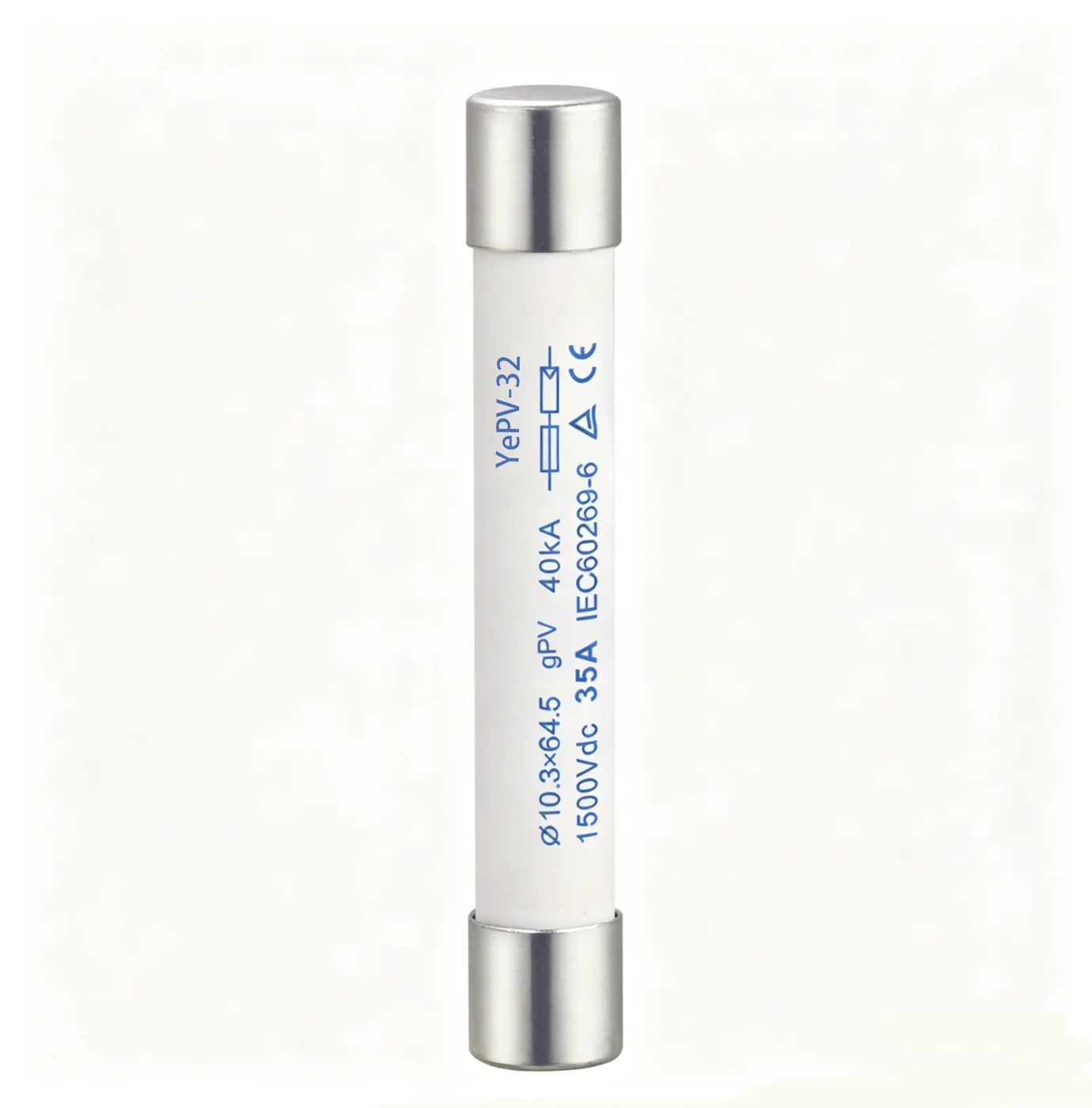

YePV-32 1500VDC 10x65mm Solar PV Fuse Link

YePV-32 is a 1500VDC 10x65mm cylindrical solar fuse link, built for overcurrent protection of PV string and…

Overview

YePV-32 is a 1500VDC 10x65mm cylindrical solar fuse link, built for overcurrent protection of PV string and combiner box in photovoltaic power systems, rated 1A35A.

As a professional China PV fuse manufacturer, YePV develops reliable fuse components to satisfy global solar market demands.

Key points

As a professional China PV fuse manufacturer, YePV develops reliable fuse components to satisfy global solar market demands.

Suitable for 1500VDC photovoltaic systems

Wide current range: 1A35A

TUV, CE, UL certified, complies with IEC & UL PV standards

Compact cylindrical fuse body

Low power loss for higher system energy efficiency

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Features & Benefits

Suitable for 1500VDC photovoltaic systems

Wide current range: 1A35A

TUV, CE, UL certified, complies with IEC & UL PV standards

Compact cylindrical fuse body

Low power loss for higher system energy efficiency

Matches DINrail fuse holder installation

40kA breaking capacity approved by UL, TUV and CE

Production Description

1500VDC 10x65mm Solar PV fuse link

Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6

Class of Operation

gPV

Applications

·Combiner box

·PV string, PV array protection

·Inverters

·Battery charge controllers

·Re-combiner units

·In-line PV module protection

Recommended Fuse Holder

Without indicator:YePV-32D 10x65

Country of Origin

People's Republic of China

Fuse cold resistance and power dissipation

Serial number	Rated current（A）	Pre-arcing I2t	Total I2t	1In（W）
1	0.5	5	26	0.9
2	1	10	52	1.1
3	2	19	104	1.3
4	3	29	156	1.5
5	4	38	208	1.8
6	5	47	260	2.1
7	6	57	312	2.5
8	8	75	415	2.8
9	10	105	580	3.0
10	12	134	746	3.1
11	15	167	932	3.5
12	16	178	995	4.0
13	20	223	1243	4.5
14	25	279	1550	4.6
15	30	304	2220	5.4
16	32	325	2370	6.2
17	35	390	2844	7.5

Technical parameters

Fuse type	Rated Voltage (V)	Rated Current (A)	Dimensions/Size (mm)	Dissipated power (W)
gPV			Figure No.	D×L
YePV-32	DC1500V	1、2、3、4、5、6、8、10、12、 15、16、20、25、30、32、35	1	10.3×64.5	≤7.5
