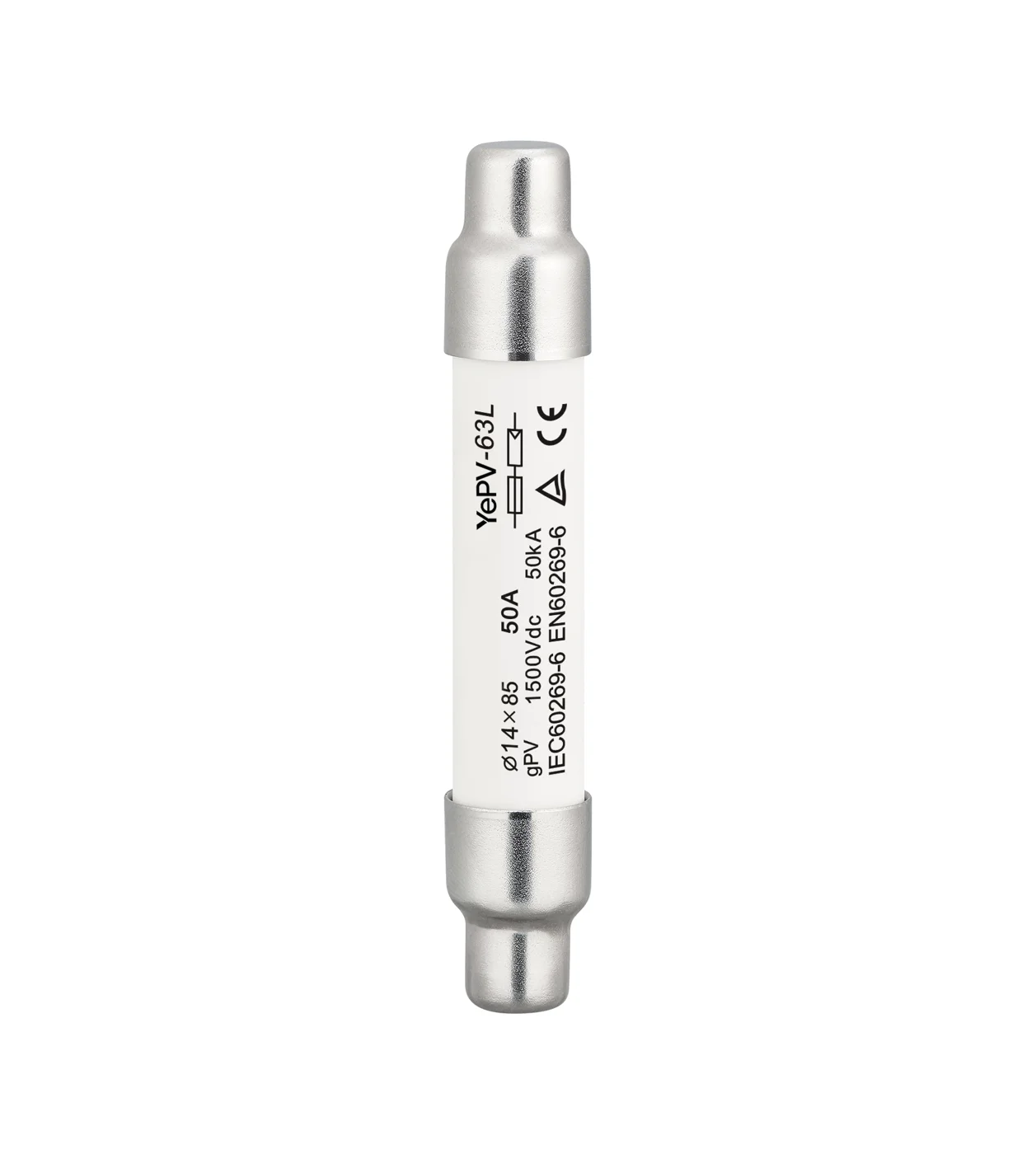

YePV-63L 1500VDC 14×85mm Solar PV Fuse Link

YePV-63L is a 1500VDC 14×85mm cylindrical PV fuse link, engineered for photovoltaic string and combiner box…

Overview

YePV-63L is a 1500VDC 14×85mm cylindrical PV fuse link, engineered for photovoltaic string and combiner box overcurrent protection. Suited for frequent current cycling, it delivers 10A50A highcurrent safeguarding within compact cabinet space for 1500VDC solar systems.

Key points

Designed for 1500VDC high-voltage photovoltaic systems

Ampere ratings: 10A50A for flexible PV project configurations

Complies with IEC & UL PV standards; UL, TUV, CE certified for global markets

Compact cylindrical body, saves cabinet installation space

Low power dissipation, improves solar system energy efficiency

Compatible with DINrail type PV fuse holders

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Features & Benefits

Designed for 1500VDC high-voltage photovoltaic systems

Ampere ratings: 10A50A for flexible PV project configurations

Complies with IEC & UL PV standards; UL, TUV, CE certified for global markets

Compact cylindrical body, saves cabinet installation space

Low power dissipation, improves solar system energy efficiency

Compatible with DINrail type PV fuse holders

50kA breaking capacity approved by UL, TUV and CE

Production Description

1500VDC 14x85mm Solar PV fuse link

Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6

Class of Operation

gPV

Applications

Combiner box

PV string, PV array protection

Inverters

Battery charge controllers

Re-combiner units

In-line PV module protection

Recommended Fuse Holder

Without indicator: YePV-63LD 10/14x85

With indicator: YePV-63LD 10/14x85X

Country of Origin

People's Republic of China

Fuse cold resistance and power dissipation

Serial number	Rated current（A）	Pre-arcing I2t	Total I2t	1In（W）
1	15	167	932	3.5
2	16	178	995	4.0
3	20	223	1243	4.5
4	25	279	1550	4.6
5	30	304	2220	5.4
6	32	325	2370	6.2
7	35	390	2844	7.5
8	40	450	3300	7.9
9	45	510	3700	8.2
10	50	570	4200	9.0
11	55	1050	5500	10.0
12	63	1200	6300	12.0

Technical parameters

Fuse type	Rated Voltage (V)	Rated Current (A)	Dimensions/Size (mm)	Dissipated power (W)
gPV			Figure No.	D×L
YePV-63L	DC1500V	10、12、15、16、20、25、30、32、35、40、45、50	1	14×85	≤12

Time-Current Characteristic

rated current (A)	Standard：IEC60269-6	Standard：UL248-19
	105%	135%	135%	200%
In≤30	＞1h non fusing	＜1h fusing	＜1h fusing	12-240s
30＜In≤60	＞1h non fusing	＜1h fusing	＜1h fusing	12-360s

Melting characteristic curve
