YePV No.5 Insulated Fuse Wrench for PV DC Fuse Connectors
YePV No.5 Insulated Fuse Wrench for PV DC Fuse Connectors
Technical Documentation

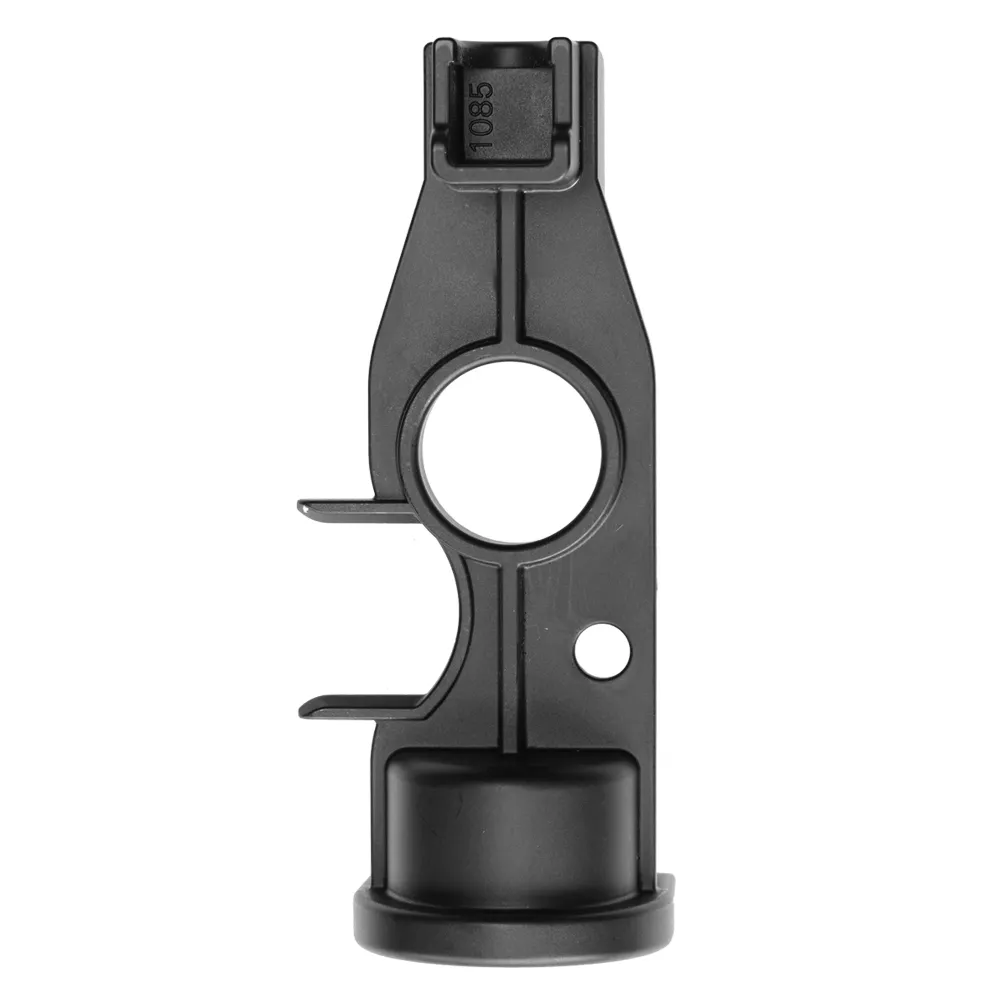

YePV Insulated Fuse Wrench No.5 is a professional safety maintenance tool built for PV fuse connectors in 1500V DC solar systems. This insulated wrench enables technicians to safely replace solar fuses, avoiding direct contact with live conductive components during photovoltaic maintenance. Different from regular fuse removal tools, it adopts insulated isolation structure and safety-grade engineering plastic to greatly boost on-site operation safety.
Product Name: YePV Insulated Fuse Wrench No.5 for 1500V DC PV Fuse Connectors Insulation Material: PC/PA (Polycarbonate / Polyamide) Safety Class: II Rated Voltage: 1500VDC Flame Class: UL94-V0
Improved Electrical Safety High-strength insulated engineering material lowers electric shock hazards. It enables safer fuse extraction and prevents accidental contact with live terminals, working alongside RCDs for extra protection for PV technicians.
FAQ
What is the main purpose of the YePV insulated fuse wrench? A: It is designed for safely removing and replacing PV fuse connectors in DC1500V solar systems.
Which fuse sizes are compatible? A: It supports 22×58mm 100A, 14×85mm 50A and 10×85mm 32A PV fuse connectors.
Is this tool suitable for DC1500V systems? A: Yes. The wrench is specially designed for photovoltaic DC1500V applications.
Does the tool provide insulation protection? A: Yes. It uses insulated engineering material and an isolation structure to help reduce electric shock risks during operation.
Where can this tool be used? A: It can be used in solar farms, commercial PV systems, residential rooftop systems, combiner box servicing and other photovoltaic maintenance work.
