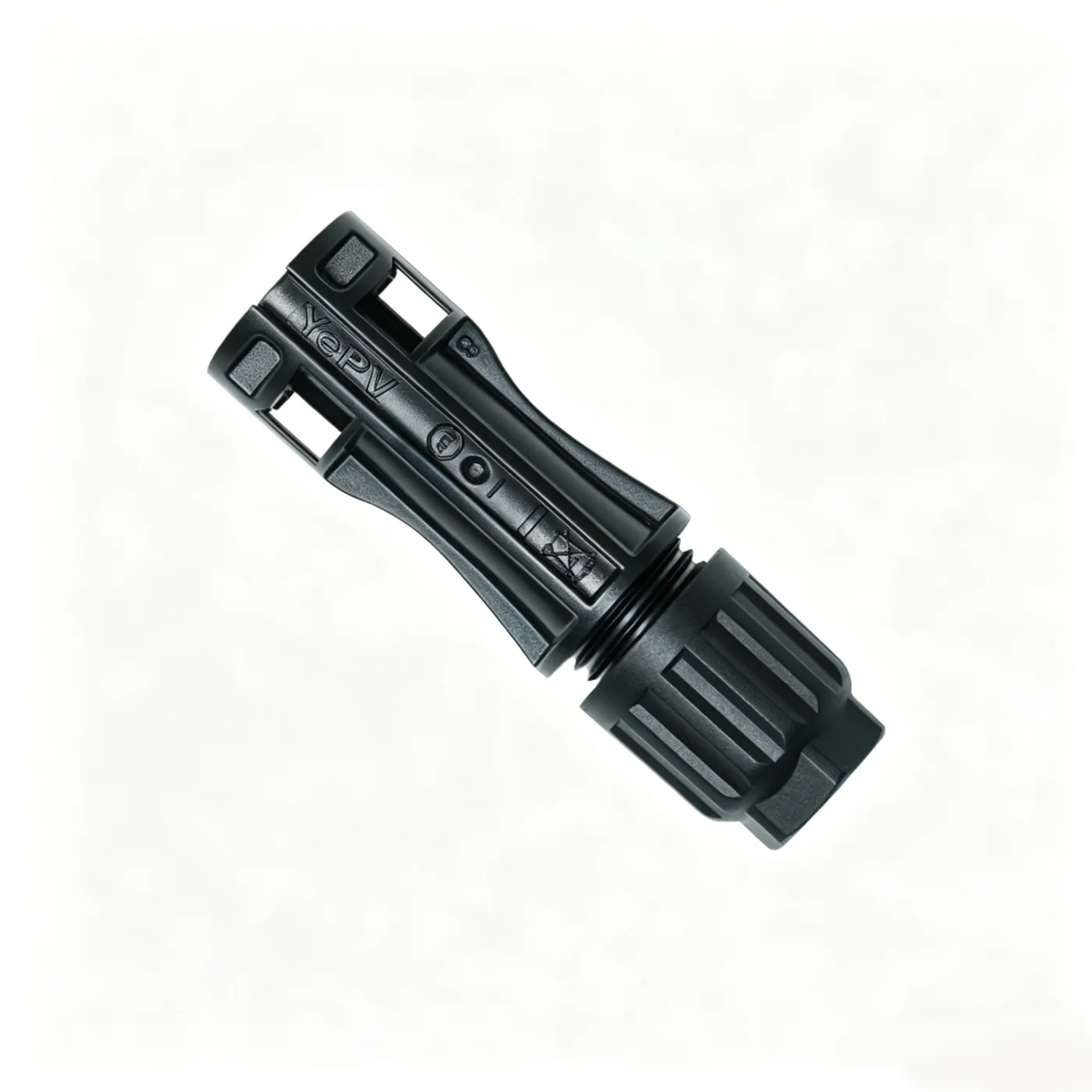

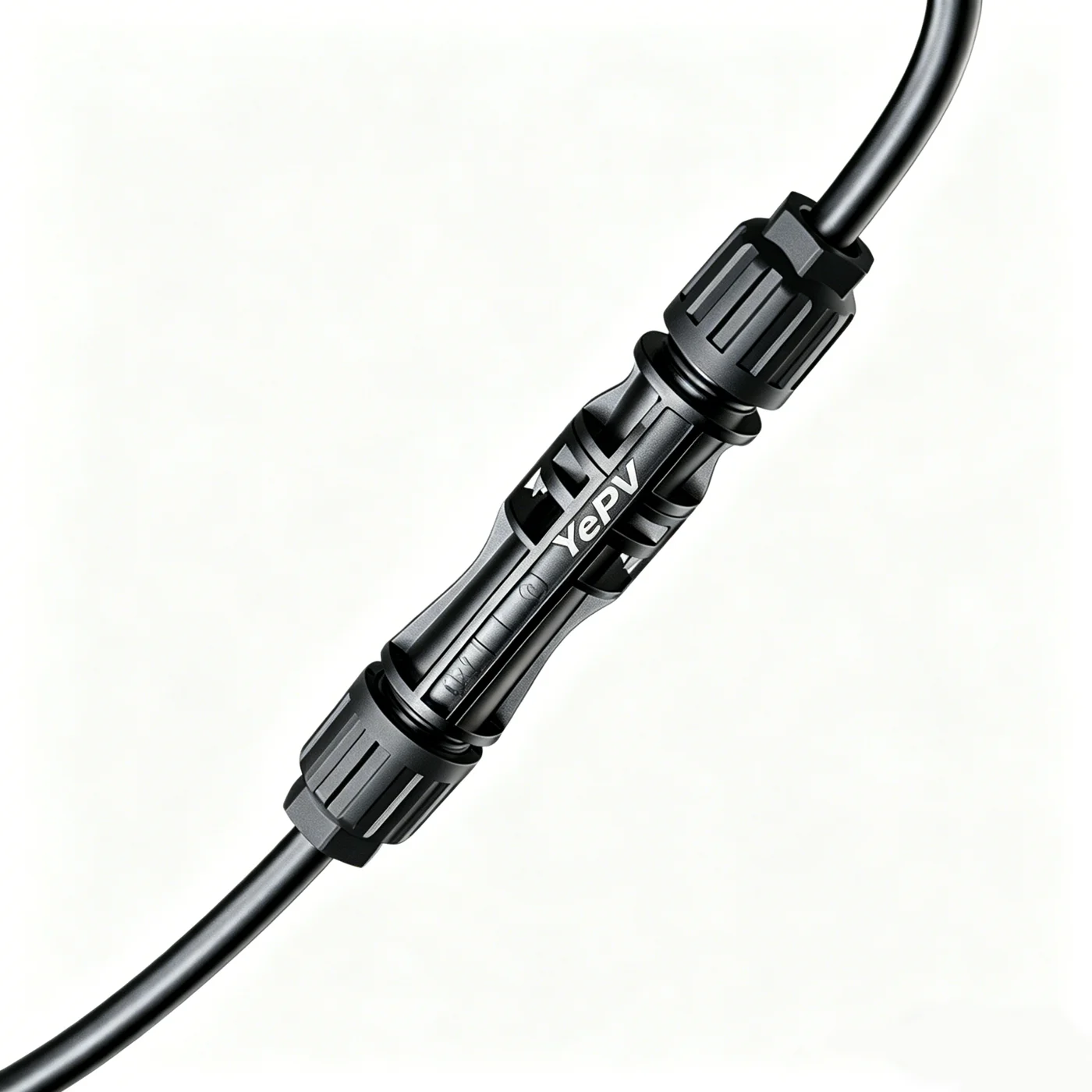

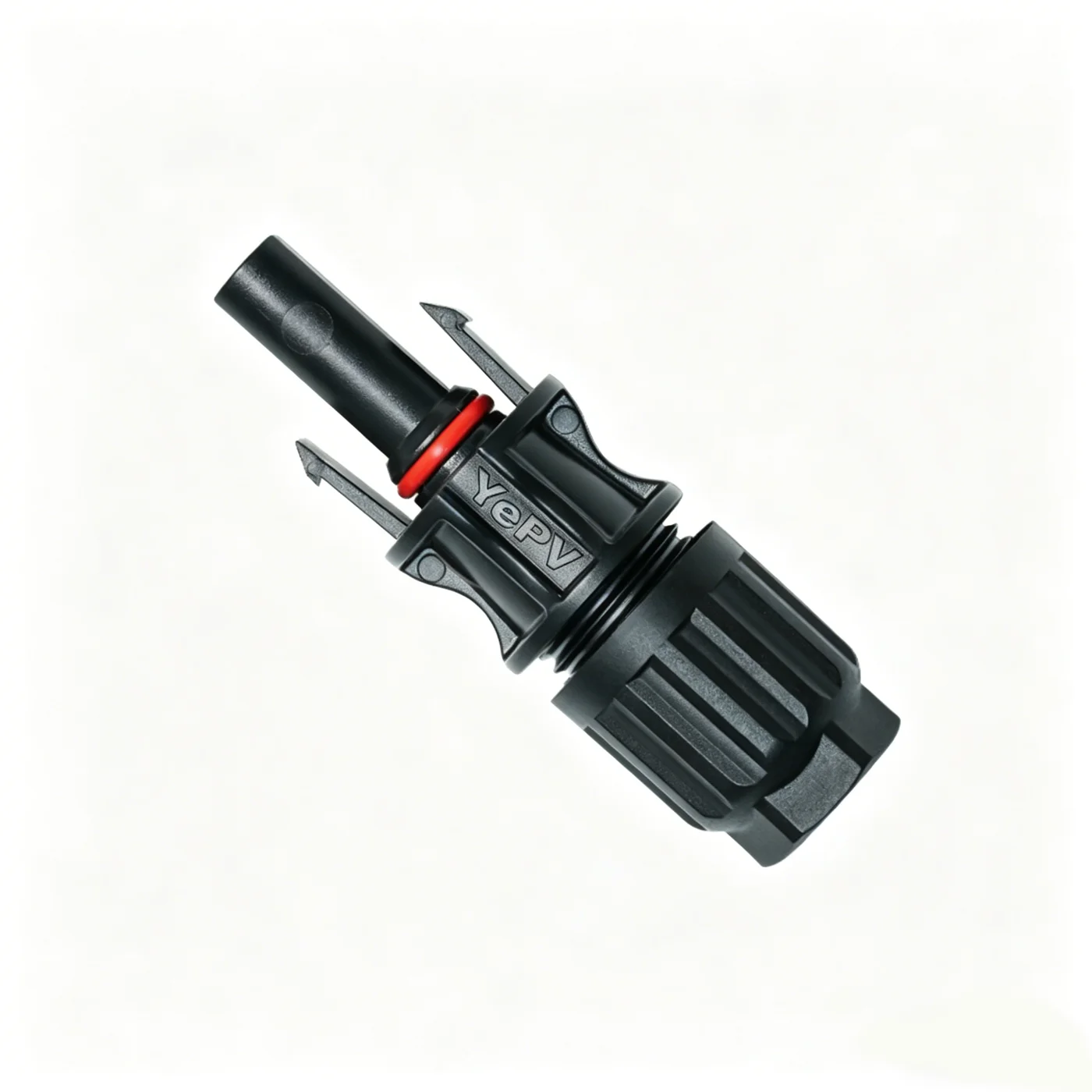

1500V DC PV Connector – Cable Side — view 1

Overview

YEPV MC-Compatible PV Cable Connectors, 1500V DC IP68

Universal MC-style solar plug for 1500VDC PV systems

Current rating matched to cable gauge:

2.5mm² / 14AWG – 35A

4mm² / 12AWG – 45A

6mm² / 10AWG – 55A

10mm² / 8AWG – 60A

16mm² / 6AWG – 75A

IP68 dust and waterproof sealing

Certified to TÜV, IEC and ETL standards

YePV 1500V DC Solar Cable Connector

Key points

Universal MC-style solar plug for 1500VDC PV systems

Current rating matched to cable gauge:

IP68 dust and waterproof sealing

Certified to TÜV, IEC and ETL standards

YePV 1500V DC Solar Cable Connector

Rated Voltage: 1500V DC

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Product Introduction

The YePV 1500V DC Solar Cable Connector is a high-current waterproof PV connector built for modern high-voltage photovoltaic systems, balancing extreme reliability and cost-saving performance. Rated for 1500V DC high voltage, it supports up to 65A current with 16mm² / 6AWG PV cables, effectively lowering overall solar cabling costs by up to 30% for large-scale solar installations.

Featured with professional IP68 dustproof and waterproof grade and premium UV-stabilized housing, this heavy-duty solar connector delivers uninterrupted stable operation in extreme environments, including coastal salt fog, desert high temperature and rainy humid areas, preventing moisture intrusion, dust erosion and long-term UV aging damage.

Product Specifications

Rated Voltage: 1500V DC

Rated Current: 30A–100A (different model options)

Test Voltage: 8kV (50Hz, 1min) high voltage withstand

Contact Resistance: ≤0.25mΩ, ultra-low power loss

Cable Cross Section: 2.5–16mm² / 14–6AWG standard PV cables

Locking Torque: 1.5–1.8Nm nut cap locking for anti-loose connection

Operating Temperature: -40°C to +85°C (IEC standard)

Conductor Terminal: Tin-plated copper, corrosion-resistant & high conductivity

Insulation Material: PPE/PA, flame-retardant and UV-stabilized

Safety Class: Class II double insulation design

Core Features

This 1500V DC high-power PV connector is professionally optimized for high-voltage solar energy systems, perfectly matching modern large-scale photovoltaic project standards.

Super High Voltage & Current Capacity: 1500VDC rating and max 100A current support efficient low-loss power transmission for industrial solar farms and high-power PV arrays.

IP68 All-Weather Protection: Fully sealed waterproof and dustproof structure ensures stable performance in harsh outdoor climates.

Long-Term UV Resistance: Outdoor-grade PPE/PA insulation material resists prolonged sunlight exposure and aging.

Wide Universal Compatibility: Standard MC4/EVO interface, plug-and-play compatible with most mainstream PV system accessories.

Full International Certification: TUV and IEC certified, with UL94-V0 flame retardancy and 16kV impulse voltage resistance, meeting global safety standards.

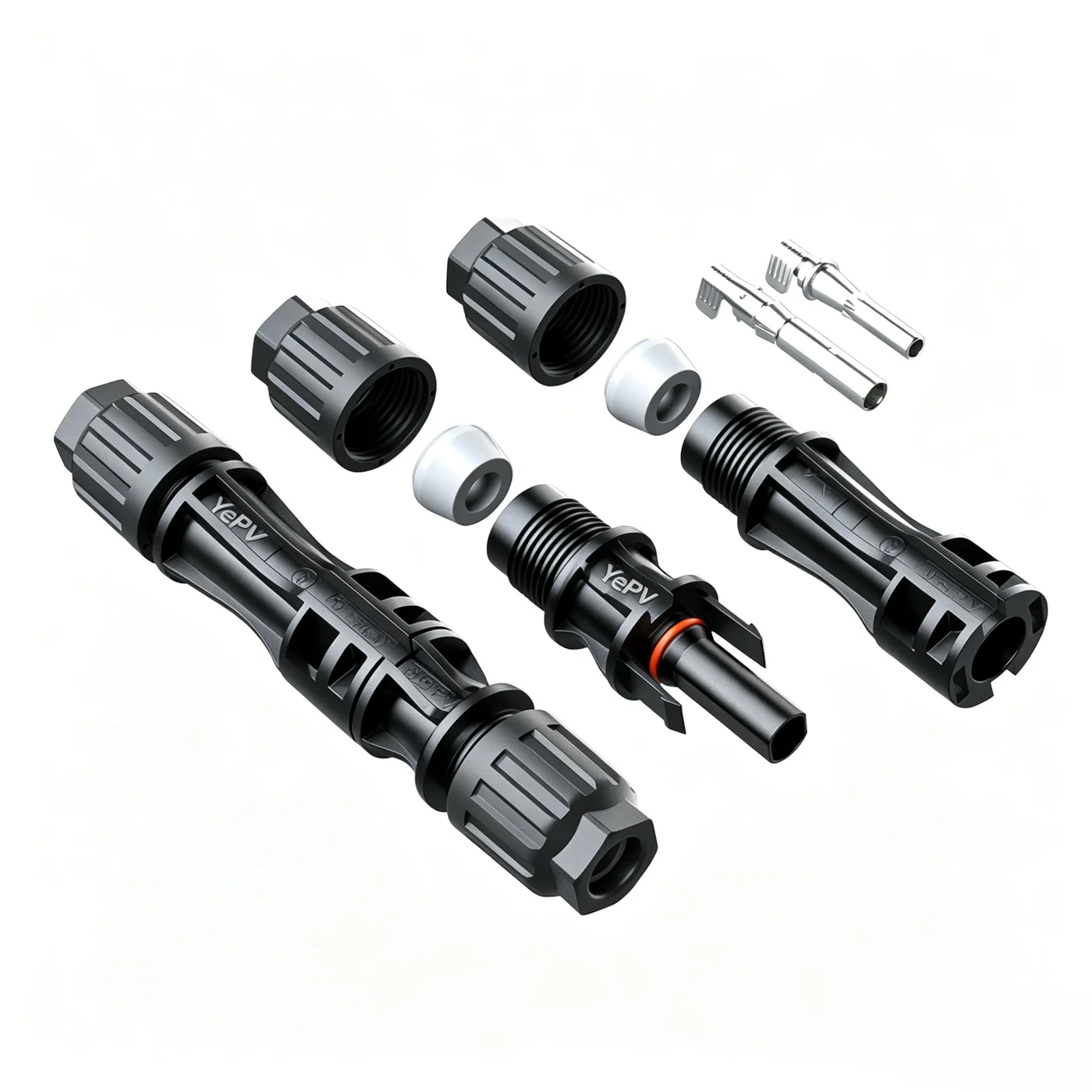

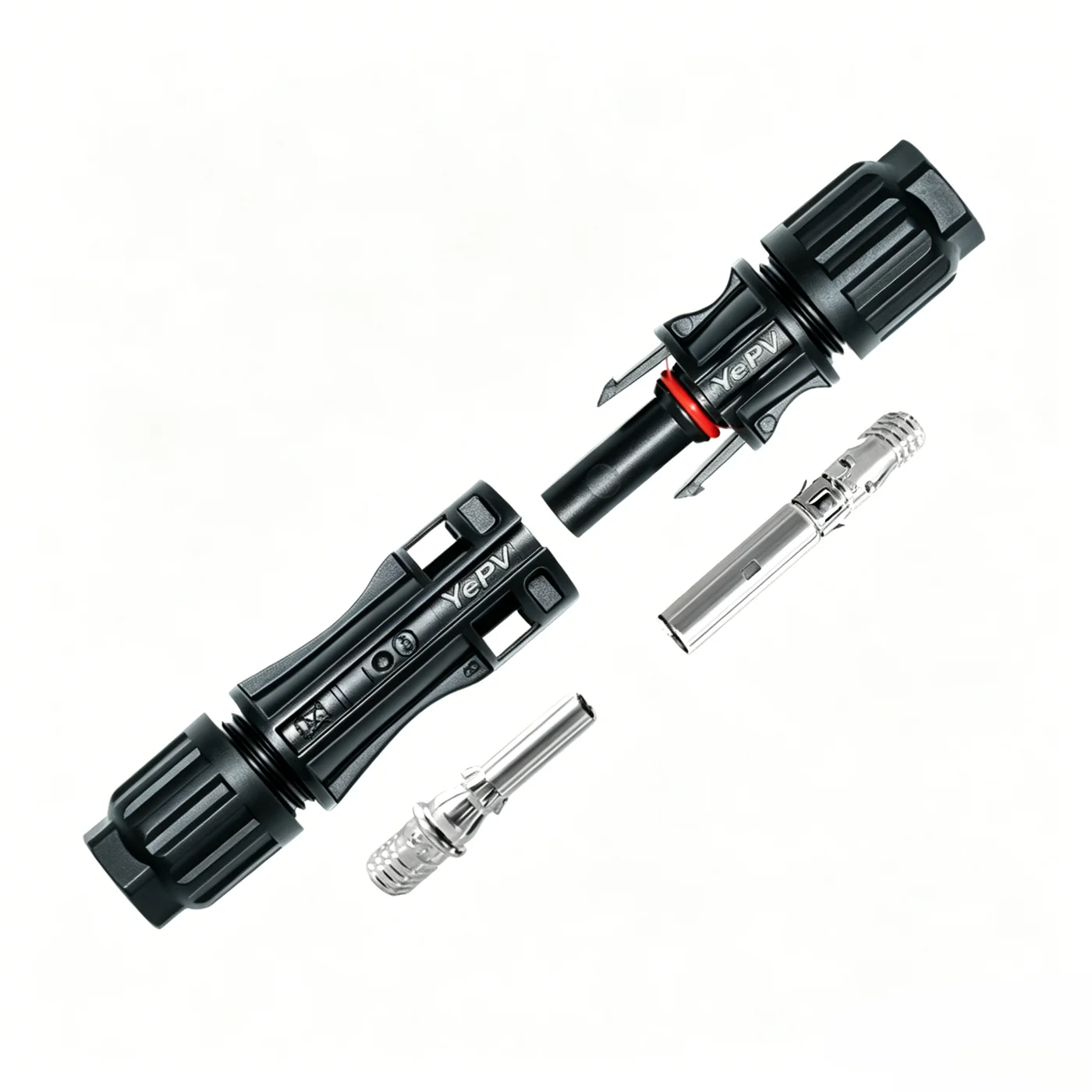

Diverse Tin-Plated Terminal Selection

YePV provides three professional terminal types: full copper, copper-aluminum composite, and full aluminum terminals, adapting to different conductivity requirements and project budget needs.

Customized Hollow & Solid Terminals

Custom terminal structures fit full-range PV cable sizes:

2.5mm² / 14AWG

4mm² / 12AWG

6mm² / 10AWG

10mm² / 8AWG

16mm² / 6AWG

Flexible customization maximizes wiring matching accuracy and construction convenience for various solar system designs.

Application

This IP68 waterproof 1500V solar connector is widely applicable for high-standard photovoltaic scenarios:

Utility-Scale Solar Farms: Perfect for 50kW–10MW large solar projects with low-loss high-voltage power transmission.

Commercial & Industrial Rooftop PV: Stabilizes dense panel arrays and minimizes circuit voltage drop.

Agrivoltaic Systems: Resists farm dust, humidity and temperature changes to maintain long-term stable performance.

TÜVCEULIECRoHSREACHISO 9001RetieImport & Export Licence

FAQ

1500V DC PV Connector – Cable Side — buyer questions

Can this 1500V connector work for 1000V DC solar systems?

Yes. It is backward compatible with 1000V DC systems, providing excellent compatibility and future-proof upgrade potential for existing PV installations.

What cable sizes are supported?

It fits 2.5–16mm² (14–6AWG) standard solar DC cables, covering most mainstream residential, commercial and utility PV wiring specifications.

Is it suitable for coastal and marine environments?

Absolutely. IP68 waterproof structure + UV & corrosion-resistant materials effectively resist saltwater erosion and strong sunlight exposure for coastal solar projects.

What is the difference between YePV and generic solar connectors?

YePV high-current PV connectors feature higher current tolerance, stricter TUV/IEC certification standards and premium industrial-grade materials, delivering up to 50% longer service life and more stable outdoor performance.

How to purchase bulk YePV solar connectors?

We support factory direct bulk supply and stable safety stock for fast delivery. You can place bulk orders directly or contact our global authorized distributors for localized procurement and professional after-sales service.
