1500V DC 2-in-1 Y Branch Connector

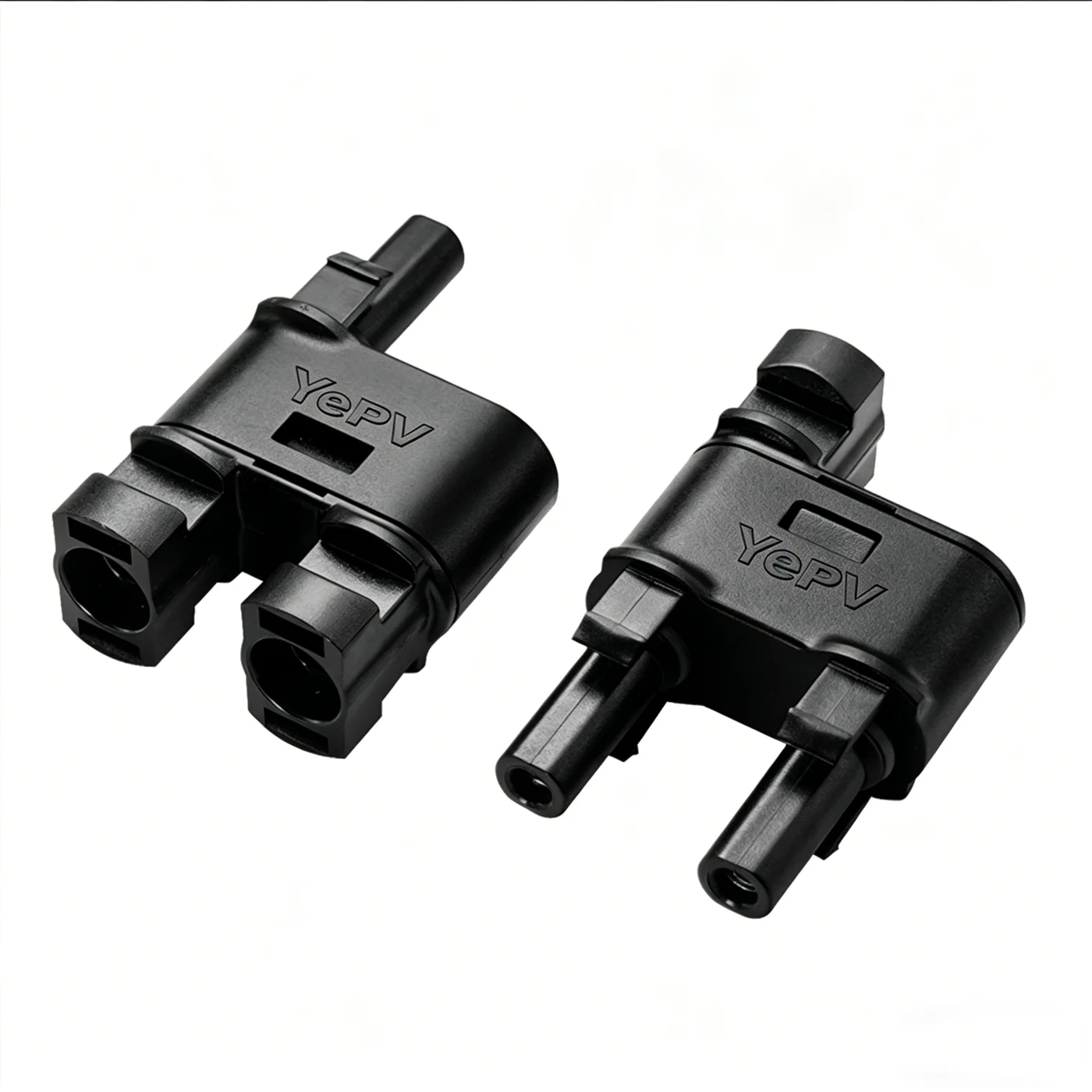

1500V DC 2-in-1 Y Branch Connector — view 1

Overview

YEPV 1500V DC 2-in-1 PV Branch Connector

IP68 heavy-duty waterproof protection

Max output current up to 65A

Adopts high-performance PPE insulation material

Fully certified by TUV and CE according to IEC62852 PV connector standard

YePV 1500V DC 2-in-1 Solar Cable Branch Connector

Key points

IP68 heavy-duty waterproof protection

Max output current up to 65A

Adopts high-performance PPE insulation material

Fully certified by TUV and CE according to IEC62852 PV connector standard

YePV 1500V DC 2-in-1 Solar Cable Branch Connector

Max Rated Current: 65A (16mm² / 6AWG cable output)

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Product Introduction

The YePV 1500V DC 2-in-1 Solar Cable Branch Connector is a high-efficiency PV parallel branch connector specially optimized for modern high-voltage photovoltaic systems. This professional 2-to-1 solar splice connector adopts an integrated dual-port structure, combining two output circuits into one compact unit. It greatly simplifies PV string wiring layout, cutting installation time and material costs by up to 40% compared with traditional separate wiring solutions.

Rated for 1500V DC high voltage and supporting a maximum 65A output current with 16mm²/6AWG PV cables, this heavy-duty MC4 branch connector ensures stable, lossless power distribution for utility-scale solar farms and commercial rooftop PV installations.

Product Specifications

Max Rated Current: 65A (16mm² / 6AWG cable output)

Rated Voltage: 1500V DC high-voltage solar system compatible

Contact Resistance: ≤0.25 mΩ, ultra-low power loss for higher system efficiency

Withstand Test Voltage: 8kV (50Hz, 1min)

Applicable Cable Cross-Section: 10mm² (8AWG) / 16mm² (6AWG) PV cables

Operating Temperature Range: -40°C to +85°C (Compliant with IEC standard)

Locking Torque: 1.5–1.8Nm, ensures vibration-proof and secure locking connection

Core Features

This 1500V DC 2-in-1 Y branch solar connector is an upgraded revolutionary wiring solution for high-voltage solar projects. It features one main input and two independent output ports, realizing fast and safe DC current branching for PV arrays.

Standard 1500VDC high-voltage rating fully adapts to modern large-scale solar farm and industrial PV system standards. It eliminates redundant junction boxes and complicated branching wiring, optimizing overall system structure while maintaining stable electrical performance and long-term operational safety.

Our Advantages

Integrated Dual-Polarity Design: Merges positive and negative terminals in one compact body, reduces cable clutter and simplifies on-site PV wiring.

High Power Transmission Capacity: 1500V DC voltage tolerance and 65A large current rating meet the demands of high-load commercial and utility solar applications.

Full IP68 Weather Resistance: Complete dustproof and waterproof sealing structure ensures continuous stable operation in harsh outdoor environments.

Certified Safety & Long Durability: Premium PPE insulation material with excellent UV aging resistance, fully TUV/CE certified per IEC62852 international safety standards.

Fast Quick-Unlock Structure: User-friendly locking design supports quick installation and maintenance, improving field working efficiency.

Application

This waterproof solar parallel connector is widely used in various high-voltage photovoltaic scenarios:

Utility-Scale Solar Farms: Perfect for power distribution and parallel connection of multiple PV panel strings

Commercial & Industrial Rooftop PV: Optimizes dense wiring and saves installation space

Off-Grid & Hybrid Solar Systems: Reliable DC connection for battery energy storage and remote power stations

Agrivoltaic Projects: Resists farm dust, humidity and extreme temperature changes for long-term outdoor use

TÜVCEULIECRoHSREACHISO 9001RetieImport & Export Licence

FAQ

1500V DC 2-in-1 Y Branch Connector — buyer questions

Is this 1500V branch connector compatible with 1000V DC solar systems?

Yes. It features backward compatibility with 1000V DC systems while being optimized for 1500V DC, effectively future-proofing your PV installations.

What cable sizes work with this solar branch connector?

It supports 10mm² (8AWG) and 16mm² (6AWG) standard PV1-F solar DC cables, covering mainstream high-power PV string wiring specifications.

Can it be used in coastal and marine humid environments?

Absolutely. IP68 waterproof sealing plus UV and corrosion-resistant insulation materials effectively resist salt fog corrosion and strong sunlight aging, ideal for coastal solar projects.

What are the advantages over traditional solar branching methods?

The integrated 2-in-1 branching structure saves up to 50% installation time, removes extra adapters and junction accessories, and significantly reduces overall solar system construction costs.

How to purchase YePV solar branch connectors in bulk?

YePV maintains sufficient global safety stock for fast delivery. You can place factory-direct bulk orders or contact our worldwide authorized agents for localized supply and professional after-sales support。
