PV Fuse Holders

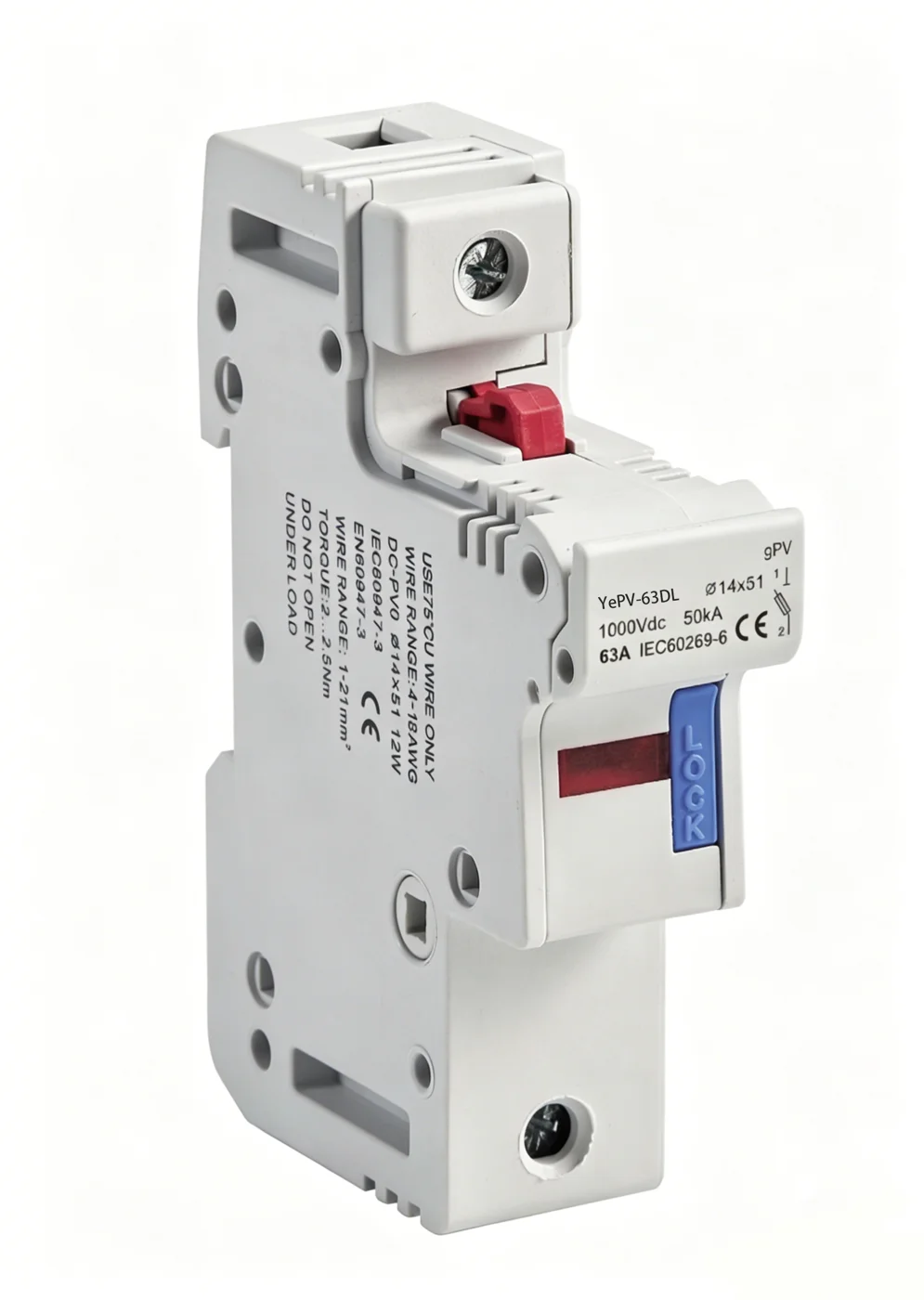

YePV-63D 1000VDC 14x51mm PV Fuse Holder

YePV-63D is a 1000VDC 14x51mm solar fuse holder, providing overload, shortcircuit protection and faultcurrent…

Overview

YePV-63D is a 1000VDC 14x51mm solar fuse holder, providing overload, shortcircuit protection and faultcurrent isolation for photovoltaic DC circuits.

Key points

YePV-63D is a 1000VDC 14x51mm solar fuse holder, providing overload, shortcircuit protection and faultcurrent isolation for photovoltaic DC circuits.

Matches YePV-63D 1000VDC 63A 14x51mm PV fuse link

Suitable for 1000VDC photovoltaic power systems

63A maximum rated current

1pole / 2pole / 3pole / 4pole optional configurations

TUV, CE certified, compliant with IEC & UL international safety standards

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Features & Benefits

Matches YePV-63D 1000VDC 63A 14x51mm PV fuse link

Suitable for 1000VDC photovoltaic power systems

63A maximum rated current

1pole / 2pole / 3pole / 4pole optional configurations

TUV, CE certified, compliant with IEC & UL international safety standards

V0 grade flameretardant housing for enhanced fire safety

Low temperaturerise design improves PV circuit protection stability

35mm standard DIN rail mounting for cabinet installation

Toolfree fuse replacement for fast field maintenance

50kA high breaking capacity, TUV & CE approved

Production Description

The YePV-63D 1000VDC PV fuse holder is 14x51mm, it was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings.

The most common applications of this 1000VDC 63A Solar PV DIN Rail Fuse Holder are PV combiner boxes, inverters battery charge controllers, and so on.

The shell material of the YePV-63D 1000VDC PV Fuse Holder complied with VO flame-retardant standards, and the dead-front design made it available to fit the busbar mounting in the Photovoltaic (PV) system.

1000VDC PV Fuse Holder Approvals & Standards

IEC60947-1 and IEC60947-3

UL4248-1 and UL4248-19

GB/T14048.1 and GB/T14048.3

Class of Operation

gPV

Solar Battery Fuse Holder Applications

Combiner box

PV string, PV array protection

Inverters

Battery charge controllers

Re-combiner units

In-line PV module protection

Recommended Fuse Holder

Do not operate under load

Use 75℃ CU wire only

Country of Origin

People's Republic of China

Technical parameters

Fuse base model No.	Equipped with fuse size	Rated Voltage	Rated Current	Figure no.	Dimensions/Size（mm）	Dissipated power(W)	Remarks
YePV-63D	14×51	1000Vdc	63A	1	See figure 1	12W	Without indicator
YePV-63DL	14×51	1000Vdc	63A	1	See figure 1	12W	With indicator
