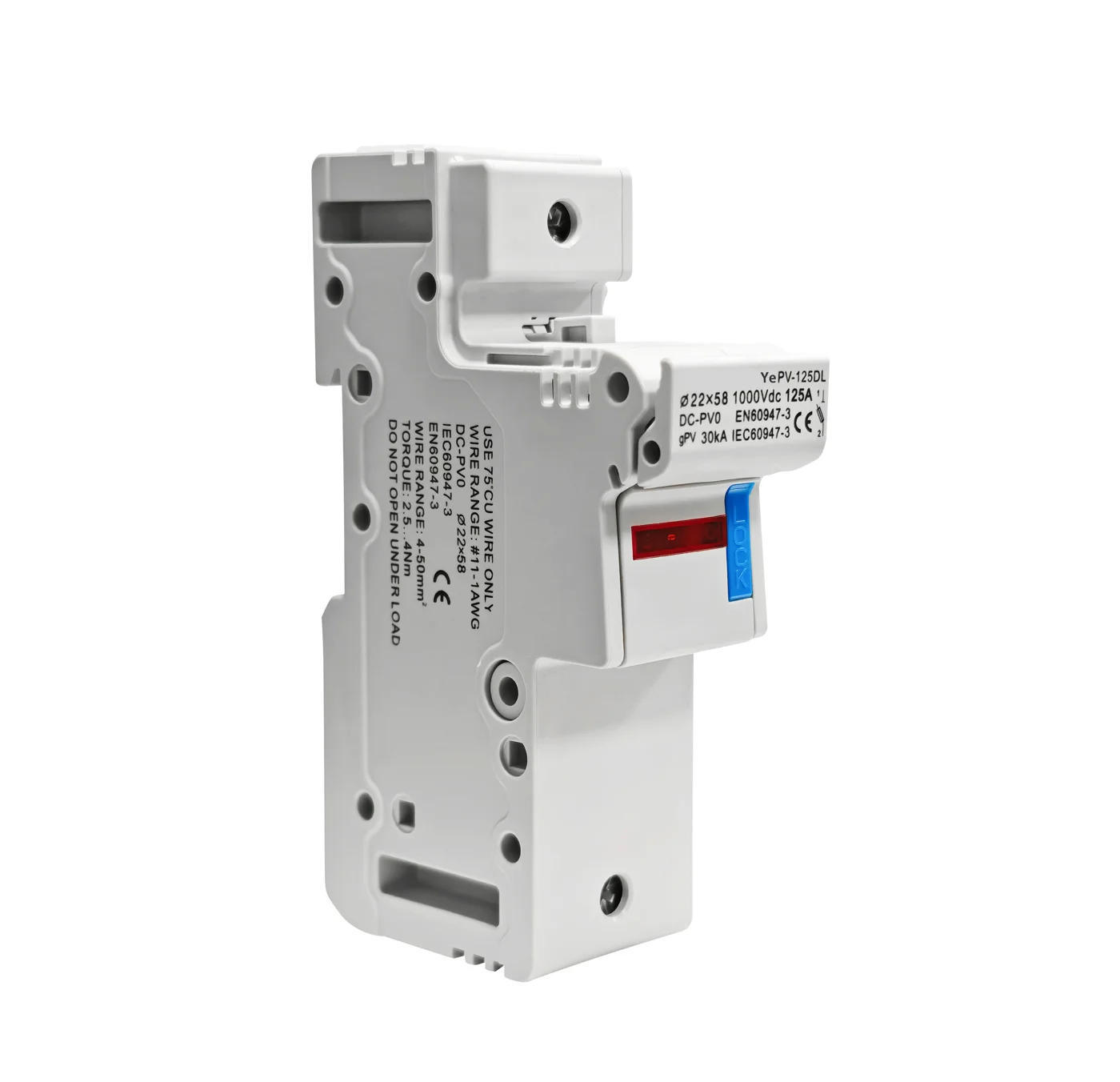

YePV-125D 1000VDC 22×58mm PV Fuse Holder

YePV-125D is a 1000VDC 22×58mm solar fuse holder for high-power photovoltaic circuit protection. It features…

Overview

YePV-125D is a 1000VDC 22×58mm solar fuse holder for high-power photovoltaic circuit protection. It features high reliability, low power loss and long service life for residential and industrial solar PV systems.

Key points

Matches YePV-125 1000VDC 22×58mm PV fuse link

Suitable for 1000VDC photovoltaic power systems

Max 125A high current rating for heavy-duty PV circuits

Optional 1/2/3/4-pole flexible configurations

TUV & CE certified, compliant with IEC/UL global safety standards

V0 flame-retardant housing for superior safety

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Features & Benefits

Matches YePV-125 1000VDC 22×58mm PV fuse link

Suitable for 1000VDC photovoltaic power systems

Max 125A high current rating for heavy-duty PV circuits

Optional 1/2/3/4-pole flexible configurations

TUV & CE certified, compliant with IEC/UL global safety standards

V0 flame-retardant housing for superior safety

Low temperature rise ensures stable DC circuit protection

Standard 35mm DIN rail mount for easy installation

Tool-free fuse replacement for convenient maintenance

50kA high breaking capacity for short-circuit protection

Production Description

The YePV-125D PV Fuse Holder was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings.

The recommended fuse link size is 22×58mm, which can safely protect 1000VDC Photovoltaic(PV) systems.

The most common applications of this 125A 22×58mm Solar PV DIN Rail Fuse Holder are PV combiner boxes, inverters battery charge controllers, and so on.

The shell material of the YePV-125D PV Fuse Holder complied with VO flame-retardant standards, and the dead-front design made it available to fit the busbar mounting in the Photovoltaic (PV) system. YePV-125D PV Fuse Holder is also available in 1, 2,3, and 4-pole configurations.

PV String Fuse Approvals & Standards

IEC60947-1 and IEC60947-3

UL4248-1 and UL4248-19

GB/T14048.1 and GB/T14048.3

Class of Operation

gPV

22x58mm Fuse Holder Applications

Combiner box

PV string, PV array protection

Inverters

Battery charge controllers

Re-combiner units

In-line PV module protection

Recommended Fuse Holder

Do not operate under load

Use 75℃ CU wire only

Country of Origin

People's Republic of China

Technical parameters

Fuse base model No.	Equipped with fuse size	Rated Voltage	Rated Current	Figure no.	Dimensions/Size（mm）	Dissipated power(W)	Remarks
YePV-125D	22×58	1000Vdc	125A	1	See figure 1	18W	Without indicator
YePV-125DL	22×58	1000Vdc	125A	1	See figure 1	18W	With indicator
