PV Fuse Holders
YePV-63LD is a 1500VDC DINrail solar fuse holder, compatible with 10×85mm & 14×85mm fuse links. Widely used…

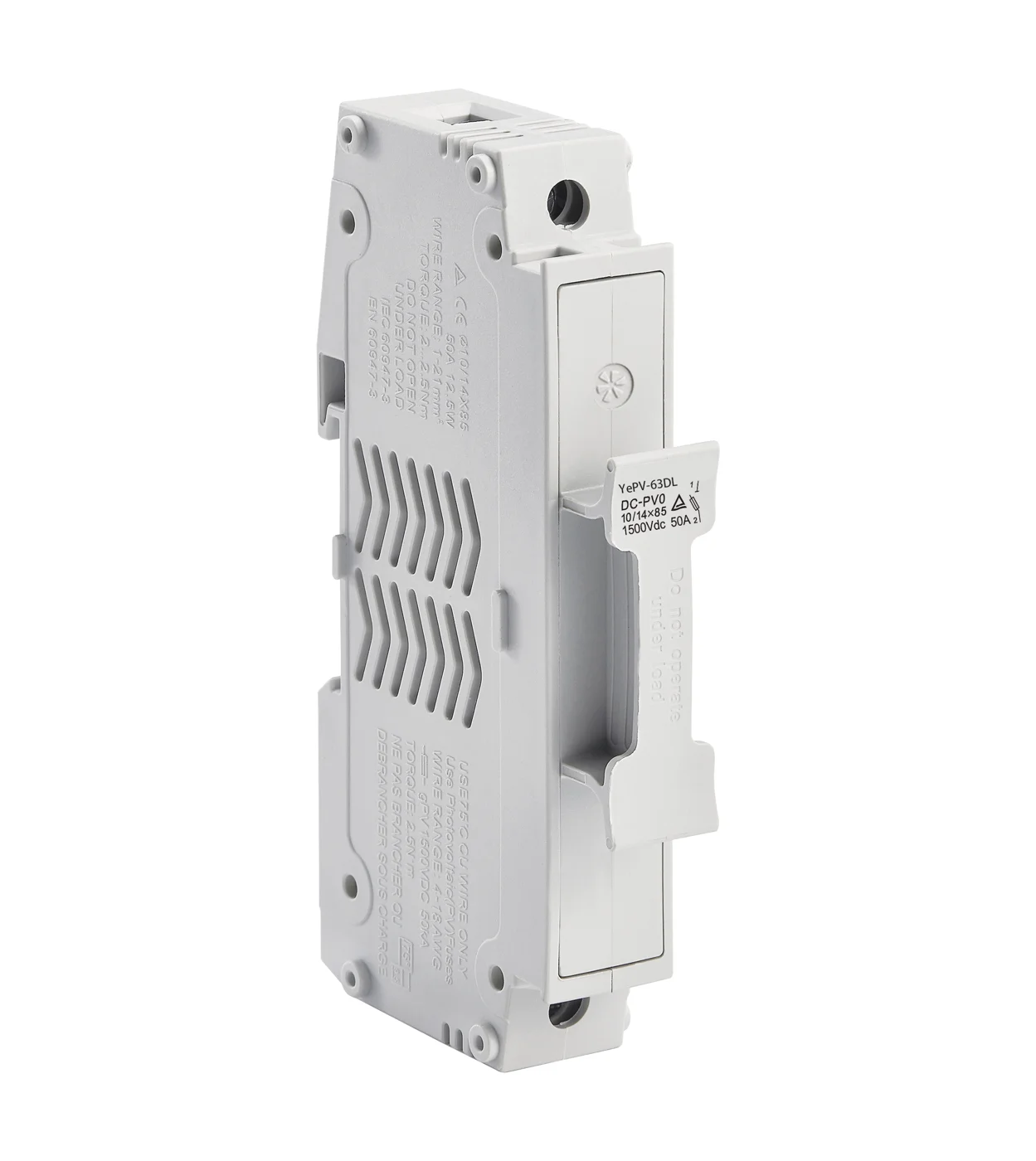

YePV-63LD 1500VDC DIN Rail Mounting PV Fuse Holder
YePV-63LD is a 1500VDC DINrail solar fuse holder, compatible with 10×85mm & 14×85mm fuse links. Widely used for PV combiner boxes, inverters and PV string protection, it delivers reliable DC overcurrent protection for high-voltage photovoltaic systems. It adopts V0 flameretardant housing and supports busbar mounting for diverse solar site installations.
Technical Documentation
YePV-63LD 1500VDC 50A 10x85mm and 14x85mm Solar PV fuse Holder
gPV
| Fuse base model No. | Equipped with fuse size | Rated Voltage | Rated Current | Figure no. | Dimensions/Size (mm) | Dissipated power (W) | Remarks |
| YePV-63LD | 10×85 14×85 | 1500Vdc | 50A | 1 | See figure 1 | 12.5W | Without indicator |
| YePV-63LDL | 10×85 14×85 | 1500Vdc | 50A | 1 | See figure 1 | 12.5W | With indicator |
FAQ
Welcome to inquire about YePV photovoltaic circuit protection products. Please send your detailed requirements via email or inquiry form, and we will reply within 24 hours.
Yes, custom logo printing service is available for all YePV solar PV components, with an MOQ of 1000 pieces per model.
Standard lead time is 7–15 working days for regular bulk orders of solar protection hardware.
Yes, exclusive bulk discounts are available for orders over 1000 pcs. Contact us to get the best factory wholesale price.
Yes. All production procedures and finished YePV solar products undergo strict QC inspection to ensure stable quality before shipment.
