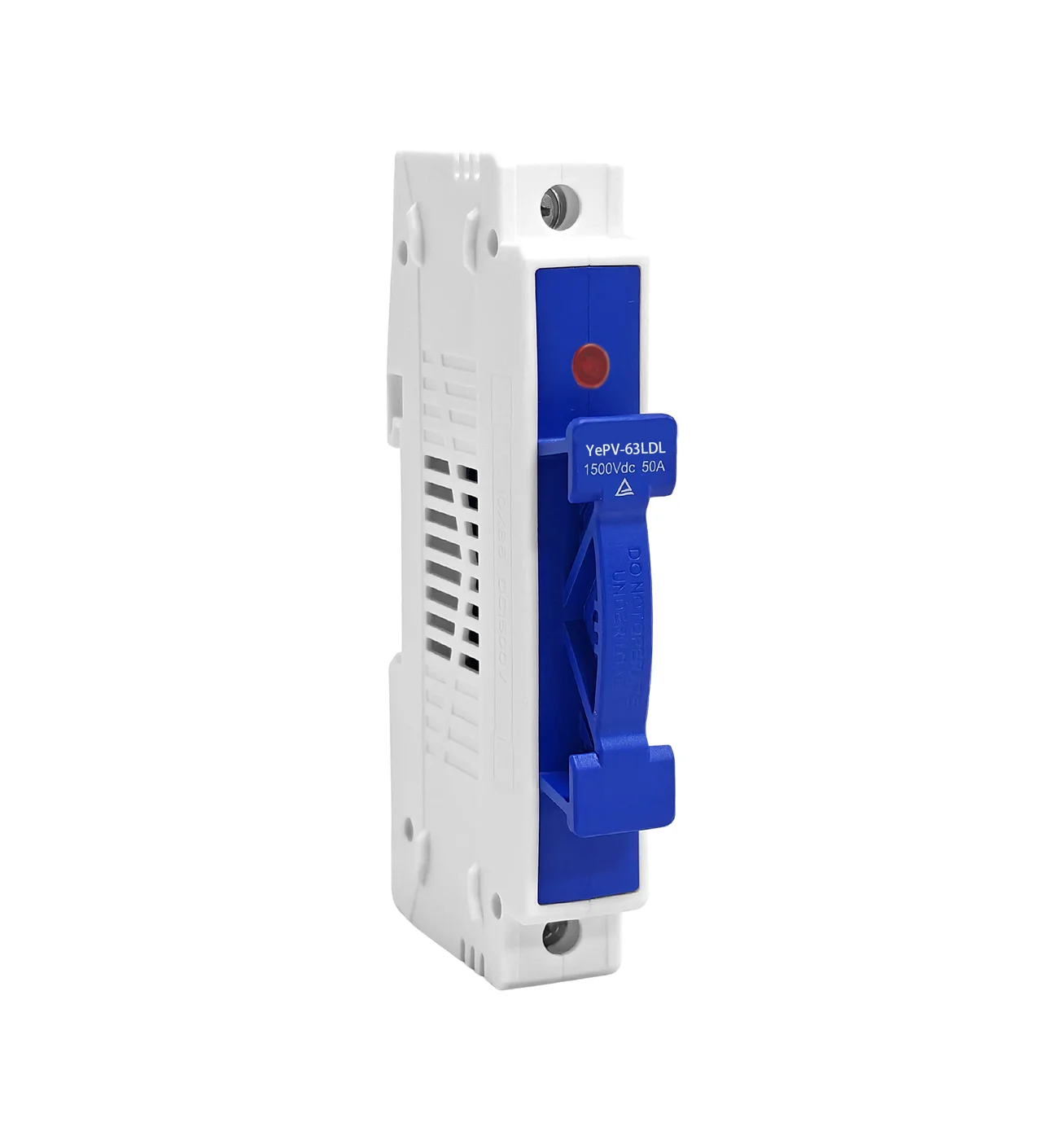

YePV-63LD / YePV-63LDL Series 1500VDC Solar PV Fuse Holder (Optional LED)

YePV-63LD / YePV-63LDL is a 1500VDC DIN rail PV fuse holder designed for highpower solar combiner boxes and…

Overview

YePV-63LD / YePV-63LDL is a 1500VDC DIN rail PV fuse holder designed for highpower solar combiner boxes and ESS energy storage systems. Compatible with 10×85mm and 14×85mm PV fuse links, this 50A solar fuse base offers reliable DC overcurrent protection for outdoor photovoltaic projects.

Key points

Dual models: YePV-63LD standard type and YePV-63LDL LED indicator type

Built-in LED fuse blown indicator for real-time fault monitoring

High rating: 1500VDC, 50A for large solar and ESS systems

TUV and CE certified, fully compliant with IEC international PV safety standards

V0 flame-retardant housing for high fire safety

Optimized airflow design reduces temperature rise for stable operation

Request quotation All ranges

Technical Documentation

Specifications, features & data tables

Features & Benefits

Dual models: YePV-63LD standard type and YePV-63LDL LED indicator type

Built-in LED fuse blown indicator for real-time fault monitoring

High rating: 1500VDC, 50A for large solar and ESS systems

TUV and CE certified, fully compliant with IEC international PV safety standards

V0 flame-retardant housing for high fire safety

Optimized airflow design reduces temperature rise for stable operation

Standard 35mm DIN rail mount for quick cabinet installation

Ergonomic tool-free fuse replacement for easy maintenance

50kA high breaking capacity for excellent short-circuit protection

Production Description

YePV-63LD 1500VDC 50A 10x85mm and 14x85mm Solar PV fuse Holder

Approvals & Standards

IEC60947-1 and IEC60947-3

UL4248-1 and UL4248-19

GB/T14048.1 and GB/T14048.3

Class of Operation

gPV

Applications

Combiner box

PV string, PV array protection

Inverters

Battery charge controllers

Re-combiner units

In-line PV module protection

Recommended Fuse Holder

Do not operate under load

Use 75℃ CU wire only

Country of Origin

People's Republic of China

Technical parameters

Fuse base model No.	Equipped with fuse size	Rated Voltage	Rated Current	Figure no.	Dimensions/Size (mm)	Dissipated power (W)	Remarks
YePV-63LD	10×85 14×85	1500Vdc	50A	1	See figure 1	12.5W	Without indicator
YePV-63LDL	10×85 14×85	1500Vdc	50A	1	See figure 1	12.5W	With indicator
