1000V DC Anti-Reverse Diode Connector

The YePV 1000V DC Solar Diode Connector is a premium inline PV diode connector built for modern photovoltaic power systems, delivering outstanding stability and energy efficiency for residential and commercial solar projects.

Featuring professional IP67 waterproof and dustproof protection, this outdoor solar connector resists dust ingress and temporary water immersion, ensuring long-lasting performance in harsh outdoor weather conditions. Designed as a reliable PV reverse current protection accessory, it effectively prevents backflow current damage to solar panels. It supports 30A rated current without diode, and 10A operating current with built-in diode (15A diode rating), balancing safe power transmission and circuit protection.

Made of high-strength PPE/PA engineering material, this 1000VDC solar connector offers excellent UV resistance, chemical stability and mechanical toughness to reduce replacement frequency and lower long-term operational costs. With ultra-low contact resistance ≤0.25 mΩ, it minimizes power dissipation and improves the overall power generation efficiency of solar arrays. It fits 2.5mm²–6mm² PV cables, providing flexible wiring solutions for diverse system designs.

Boasting user-friendly plug-and-play structure, the connector supports easy installation, routine inspection and simple maintenance. With comprehensive weather resistance and stable electrical performance, it serves as a highly cost-effective and dependable solution for all types of solar photovoltaic installations.

Engineered specifically for high-voltage photovoltaic systems, the YePV 1000V DC PV diode connector meets strict outdoor solar operating standards. Rated for 1000VDC high voltage, it fully adapts to mainstream residential, commercial and industrial solar system configurations.

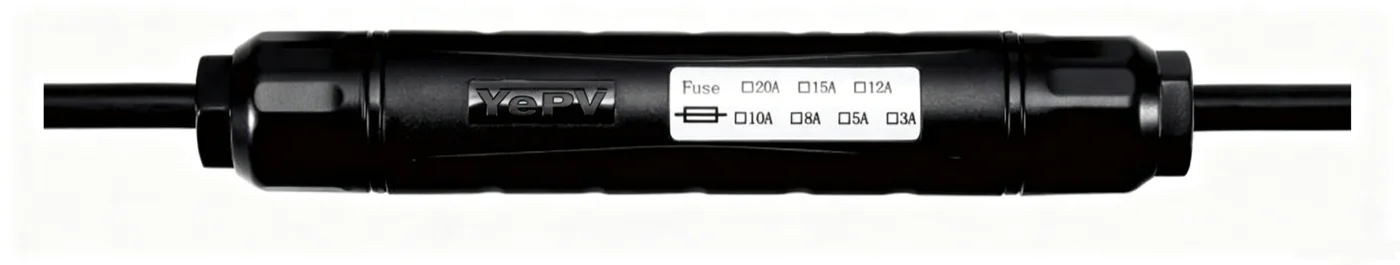

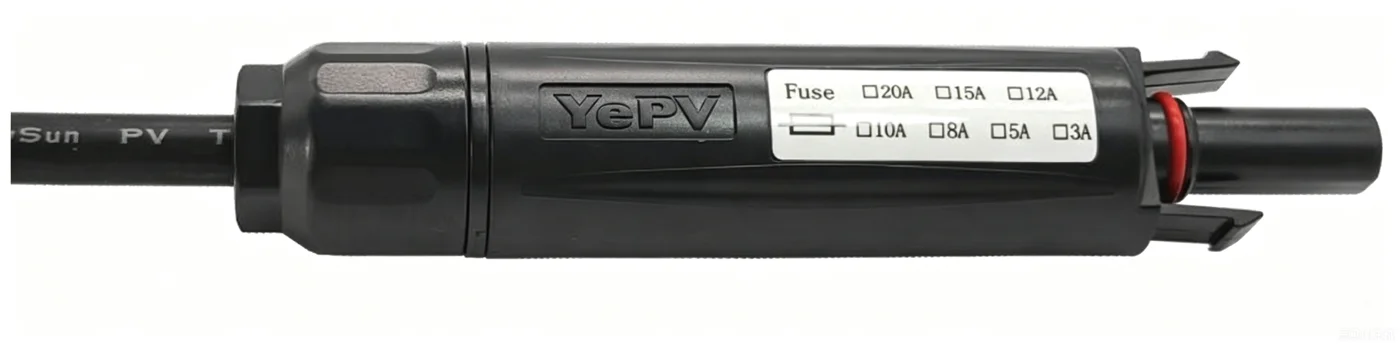

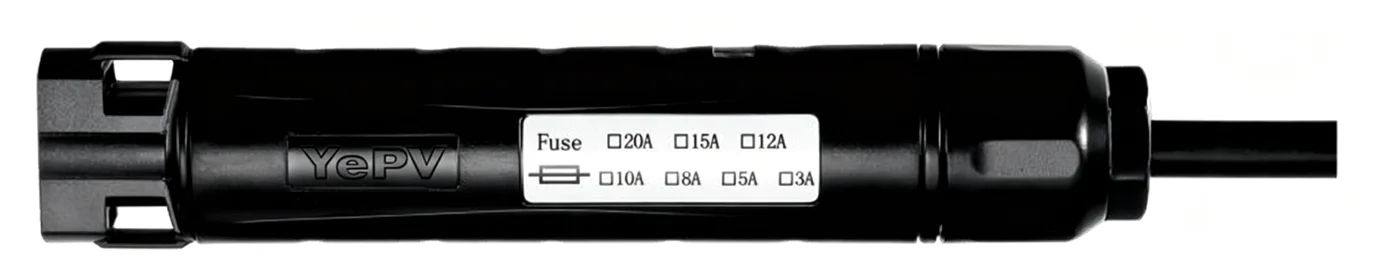

Equipped with IP67 all-weather protection, this waterproof solar connector works stably in rainy, dusty and coastal environments. It supports 2.5mm²–6mm² standard PV cables and comes with four versatile models: cable-to-cable, male-to-female, cable-to-male, cable-to-female, perfectly matching various solar panel and inverter connection layouts.

This waterproof PV diode connector is widely used in residential rooftop solar systems, commercial photovoltaic stations and large-scale solar farms. It is mainly applied to circuit connection between solar panels, inverters and system control components.

The built-in blocking diode provides professional PV string reverse current protection, effectively avoiding backflow damage and extending the service life of solar modules. With stable 1000VDC high-voltage performance and durable outdoor structure, it is the ideal wiring protection accessory for all mainstream solar power installations.
