YePV-80D 1500VDC 22×58mm Solar PV Fuse Holder
YePV-80D is a 1500VDC 80A PV fuse holder, designed for PV string and solar DC circuit protection. It fits…
Overview

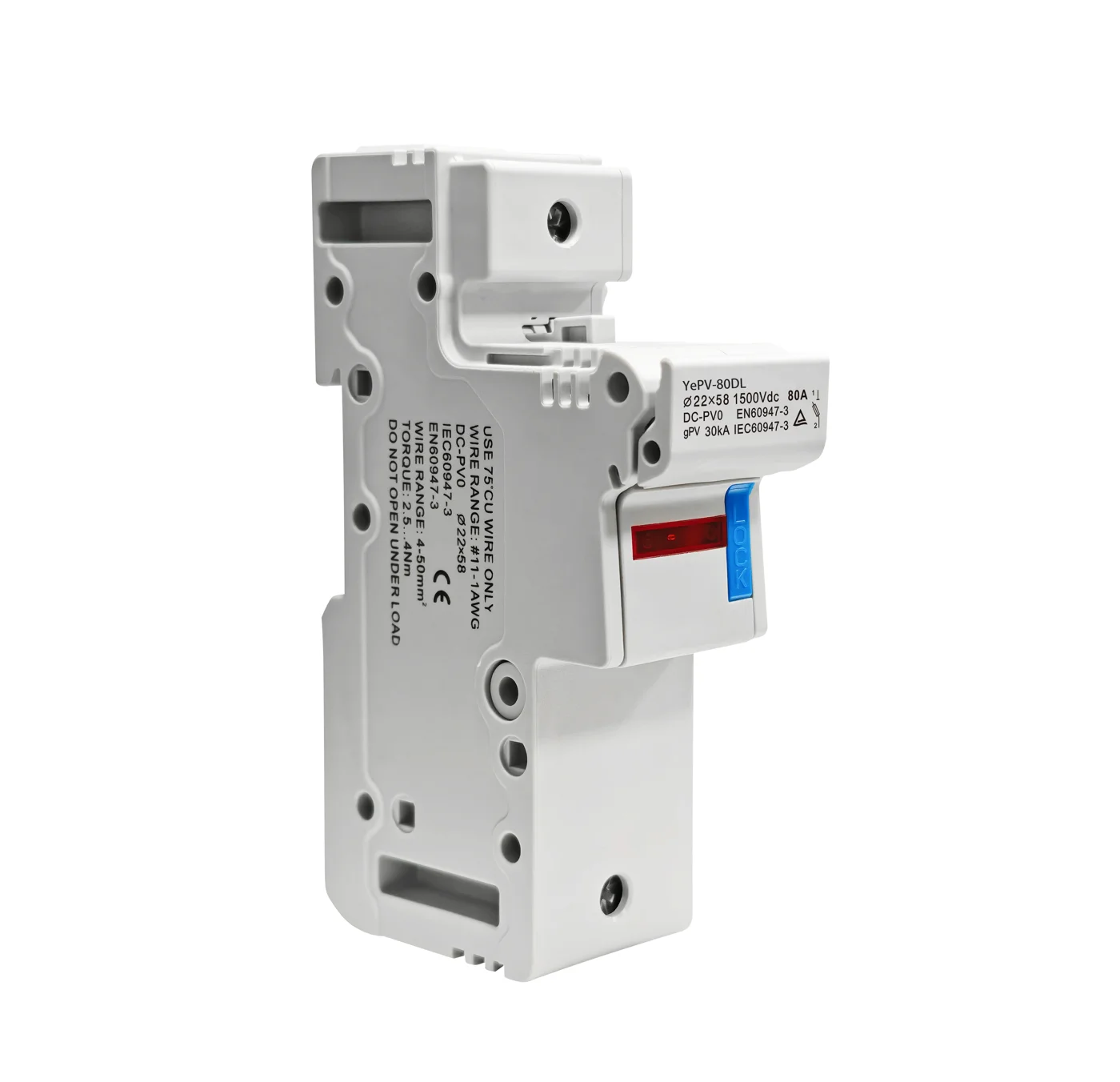

YePV-80D 1500VDC 22×58mm Solar PV Fuse Holder
YePV-80D is a 1500VDC 80A PV fuse holder, designed for PV string and solar DC circuit protection. It fits 22×58mm fuse links and works perfectly for 1500VDC photovoltaic systems.
This DIN rail solar fuse base features V0 flame-retardant housing and dead-front safety design. Ideal for PV combiner boxes, solar inverters and battery controllers, it supports 1/2/3/4-pole installation.
Key points
Compatible with YePV-80 22×58mm 1500VDC fuse link
Rated for 1500VDC solar PV systems
80A high current rating
1/2/3/4-pole optional designs
TUV, CE, IEC & UL certified
V0 flame-retardant material for safety
Technical Documentation
Specifications, features & data tables
Low temperature rise for stable operation
35mm DIN rail mount
Tool-free quick fuse replacement
50kA high breaking capacity
Production Description
1500VDC 22×58mm Solar PV fuse Holder
Approvals & Standards
IEC60947-1 and IEC60947-3
UL4248-1 and UL4248-19
GB/T14048.1 and GB/T14048.3
Class of Operation
gPV
Applications
Combiner box
PV string, PV array protection
Inverters
Battery charge controllers
Re-combiner units
In-line PV module protection
Recommended Fuse Holder
Do not operate under load
Use 75℃ CU wire only
Country of Origin
People's Republic of China
Technical parameters
| Fuse base model No. | Equipped with fuse size | Rated Voltage | Rated Current | Figure no. | Dimensions/Size（mm） | Dissipated power(W) | Remarks |
| YePV-80D | 22×58 | 1500Vdc | 80A | 1 | See figure 1 | 12W | Without indicator |
| YePV-80DL | 22×58 | 1500Vdc | 80A | 1 | See figure 1 | 12W | With indicator |
